The cone crusher operates on the laminated crushing principle, where materials are progressively crushed between a moving mantle and a stationary concave. This method applies compressive force in a controlled manner, breaking down rocks through multiple layers of pressure. Unlike impact crushers that rely on sudden collisions, this gradual compression reduces the production of needle-like or flaky particles, resulting in more uniformly shaped aggregates ideal for construction applications.
Laminated crushing creates a natural screening effect within the crushing chamber, allowing properly sized material to descend while larger pieces remain for further crushing. This self-regulating mechanism enhances efficiency and product consistency while minimizing energy waste. The process generates less dust and noise compared to alternative crushing methods, making it environmentally preferable for urban construction projects.
Modern cone crushers feature hydraulic CSS (closed side setting) adjustment systems that enable operators to modify output size without stopping production. Through a centralized control panel, hydraulic cylinders precisely position the main shaft to alter the space between mantle and concave. This innovation represents a significant advancement over traditional mechanical adjustment methods that required manual shim changes and lengthy downtime.
The tramp release system serves as a crucial safety component, automatically protecting the crusher from uncrushable materials like tramp metal. When excessive force is detected, hydraulic accumulators allow the adjustment ring to lift momentarily, creating an emergency discharge path for the foreign object. This instantaneous response prevents catastrophic damage to bearings and other critical components while maintaining operational continuity.
Cone Crusher Applications in Modern Industries

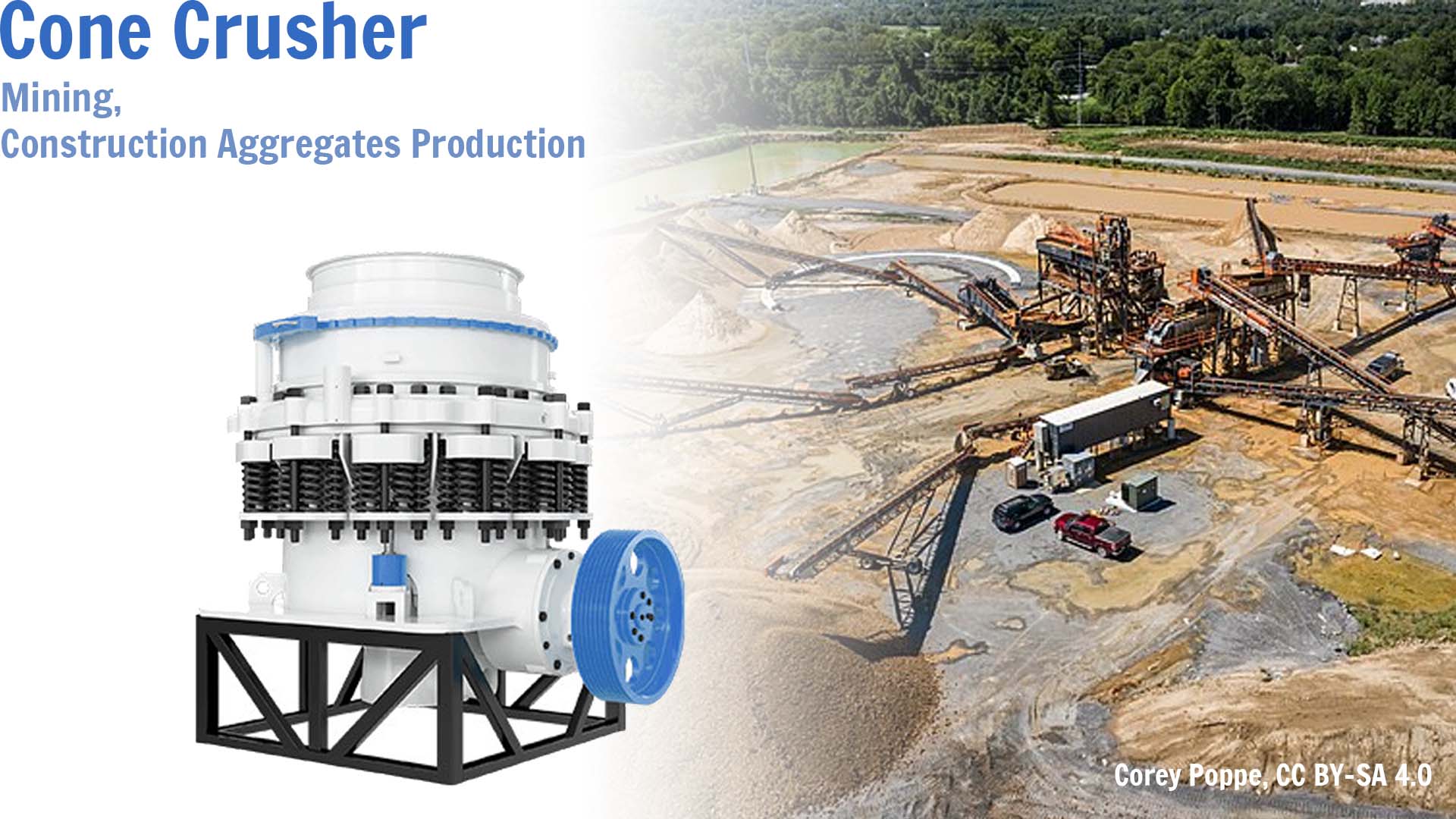

Cone crushers play a vital role in mining operations where hard materials like granite and basalt require precise size reduction. These machines efficiently process raw materials into 10-30mm fragments, creating optimal feedstock for downstream mineral extraction processes. In iron ore beneficiation, cone crushers perform preliminary size reduction to expose more mineral surfaces, significantly improving the recovery rates during subsequent separation stages.
The unique crushing chamber geometry of cone crushers applies a combination of compression and shearing forces, making them particularly effective for hard rock fragmentation. This mechanical advantage allows continuous processing of abrasive materials while maintaining consistent output gradation, a critical requirement for mineral processing plants where particle size directly affects chemical reactivity and separation efficiency.
Aggregate Production for Construction
In aggregate production facilities, cone crushers transform raw limestone into precisely graded 5-40mm cubical aggregates essential for high-quality concrete mixtures. The interparticle crushing action within the chamber produces aggregates with superior shape characteristics, enhancing the compressive strength of final construction materials. For river pebble processing, cone crushers demonstrate remarkable wear resistance, significantly reducing operating costs compared to alternative crushing technologies.
The adjustable crushing gap and hydraulic setting regulation systems enable operators to maintain strict output specifications despite variations in feed material hardness. This technological feature proves particularly valuable when processing natural deposits where geological variations occur, ensuring consistent product quality throughout the production cycle without requiring mechanical adjustments that would interrupt operations.
Cement and Recycling Sector Applications
Within cement manufacturing, cone crushers perform clinker pre-crushing to reduce energy consumption during the final grinding stage. By breaking down large clinker nodules into smaller fragments, these machines optimize the grinding mill's efficiency, directly translating to reduced power consumption per ton of cement produced. The controlled crushing action also minimizes the generation of fine dust during this process.
When processing construction and demolition waste, cone crushers equipped with metal detection systems effectively separate reinforcing steel from concrete rubble while producing high-quality recycled aggregates. The machine's ability to handle heterogeneous materials with varying hardness makes it indispensable in urban resource recovery operations, where the processed materials must meet stringent engineering specifications for reuse in new construction projects.
Performance Advantages Over Jaw & Impact Crushers
Particle Shape Control
Stone crushers excel in producing cubical-shaped aggregates compared to jaw crushers, which often generate elongated or flaky particles due to their compressive crushing mechanism. The interparticle crushing action in modern cone crushers ensures better particle shape consistency, with granite crushing operations typically achieving less than 15% flaky content. This superior shape characteristic makes the output ideal for high-strength concrete production and road construction where angular, interlocking particles are required.
The controlled crushing chamber geometry and optimized speed settings enable stone crushers to apply both compressive and grinding forces, effectively breaking materials along their natural cleavage planes. This results in reduced need for secondary processing and provides better material yield compared to traditional jaw crushing systems, while maintaining consistent output quality even with varying feed sizes.
Energy Efficiency & OPEX
Modern stone crushers demonstrate significant energy savings, consuming 20-30% less power per ton processed compared to impact crushers when handling hard materials. This efficiency stems from their optimized crushing chamber design that maximizes energy transfer to the material rather than creating excessive friction or heat losses. The hydraulic adjustment system further contributes to energy savings by maintaining optimal crushing parameters automatically throughout the wear cycle.
Operational costs are significantly reduced through features like the hydraulic clearing system that allows quick removal of jammed materials without disassembly, minimizing downtime during routine maintenance. The robust construction and wear-resistant components extend service intervals, while the automatic wear compensation system maintains consistent product quality without manual adjustments, reducing labor requirements and operational complexity.
Specialized Solutions
Mobile Cone Crusher
The mobile cone crusher represents a breakthrough in flexible crushing operations, particularly in remote mining sites lacking permanent infrastructure. Its tracked chassis allows autonomous mobility across rugged terrains, enabling rapid deployment and relocation without reliance on fixed installations. This technology proved instrumental in a temporary aggregate production case, where a 200-ton-per-hour configuration processed raw granite into construction-grade materials for a highway project, demonstrating how mobile units can establish functional processing sites within 48 hours of arrival.
Beyond mobility, these systems integrate the full crushing circuitry into a single unit, maintaining stationary plant performance standards while eliminating civil engineering requirements. The self-contained design incorporates onboard power packs, material hoppers, and discharge conveyors, making them ideal for short-term contracts or seasonal operations. Environmental benefits emerge from reduced site disturbance, as mobile crushers minimize the need for extensive ground preparation and can follow deposit contours during extraction.
Automation & Remote Monitoring
Modern stone crushers employ advanced automation that continuously adjusts the closed-side setting (CSS) in response to real-time material hardness and feed size data. This dynamic optimization maintains throughput efficiency while preventing crusher overload, with sensors measuring power draw, cavity levels, and product gradation to make 20-30 micro-adjustments per hour. Such systems typically yield 15-22% higher production rates compared to manual operation by ensuring the crushing chamber always works at its geometric ideal point for the processed material.
Predictive maintenance modules represent another technological leap, analyzing vibration patterns, temperature trends, and lubrication quality to forecast component wear before failures occur. Operators receive alerts about impending bearing replacements or liner changes with 90% accuracy, scheduled during planned downtime. Remote monitoring capabilities allow technicians to diagnose issues via satellite links, drastically reducing service response times in isolated locations. These smart systems collectively contribute to 40-60% lower unplanned stoppages while extending equipment lifespan through data-driven operation.
Industry Trends & Case Study
Environmental Compliance
Modern stone crushers prioritize environmental sustainability through advanced dust suppression systems. Closed-loop designs with integrated water spraying mechanisms and bag filter installations effectively reduce PM2.5 emissions by over 85% compared to traditional open-air operations. These engineering solutions demonstrate how heavy machinery can align with global air quality standards while maintaining production efficiency.
The industry's shift toward eco-friendly operations extends beyond dust control. Many manufacturers now incorporate noise-reduction cabins and vibration-dampening foundations, creating crushers that operate within 75 decibels. Such configurations allow quarries to function closer to residential areas without causing environmental disturbances, marking significant progress in balancing industrial productivity with ecological responsibility.
200TPH Granite Crushing Plant
A typical granite processing line with 200-ton-per-hour capacity combines primary jaw crushing with secondary cone crushing for optimal particle reduction. The rugged jaw crusher initially breaks large granite boulders into 150mm chunks, while the precision-engineered cone crusher further refines the material through compressive crushing between mantle and concave surfaces.
Output analysis reveals three commercially valuable aggregate fractions: 0-5mm fine sand (constituting 25% of total yield) for concrete mixing, 5-20mm medium aggregate (45%) for asphalt production, and 20-40mm coarse aggregate (30%) for road base construction. This configuration demonstrates how modern crushing plants maximize material utilization by producing multiple specification-compliant products from single-source raw materials.
