Roll Crusher: for Glass Recycling, Achieve 99% Purity Cullet with <5% Fines

In glass recycling operations, Roll Crushers address two critical pain points that Impact Crushers inherently struggle with. The first is over-crushing - while Impact Crushers generate over 30% glass powder due to their high-speed hammering action, Roll Crushers maintain powder rates below 5% through controlled compression. This particle size preservation is crucial as glass furnaces require 2-20mm cullet with minimal fines for efficient remelting.

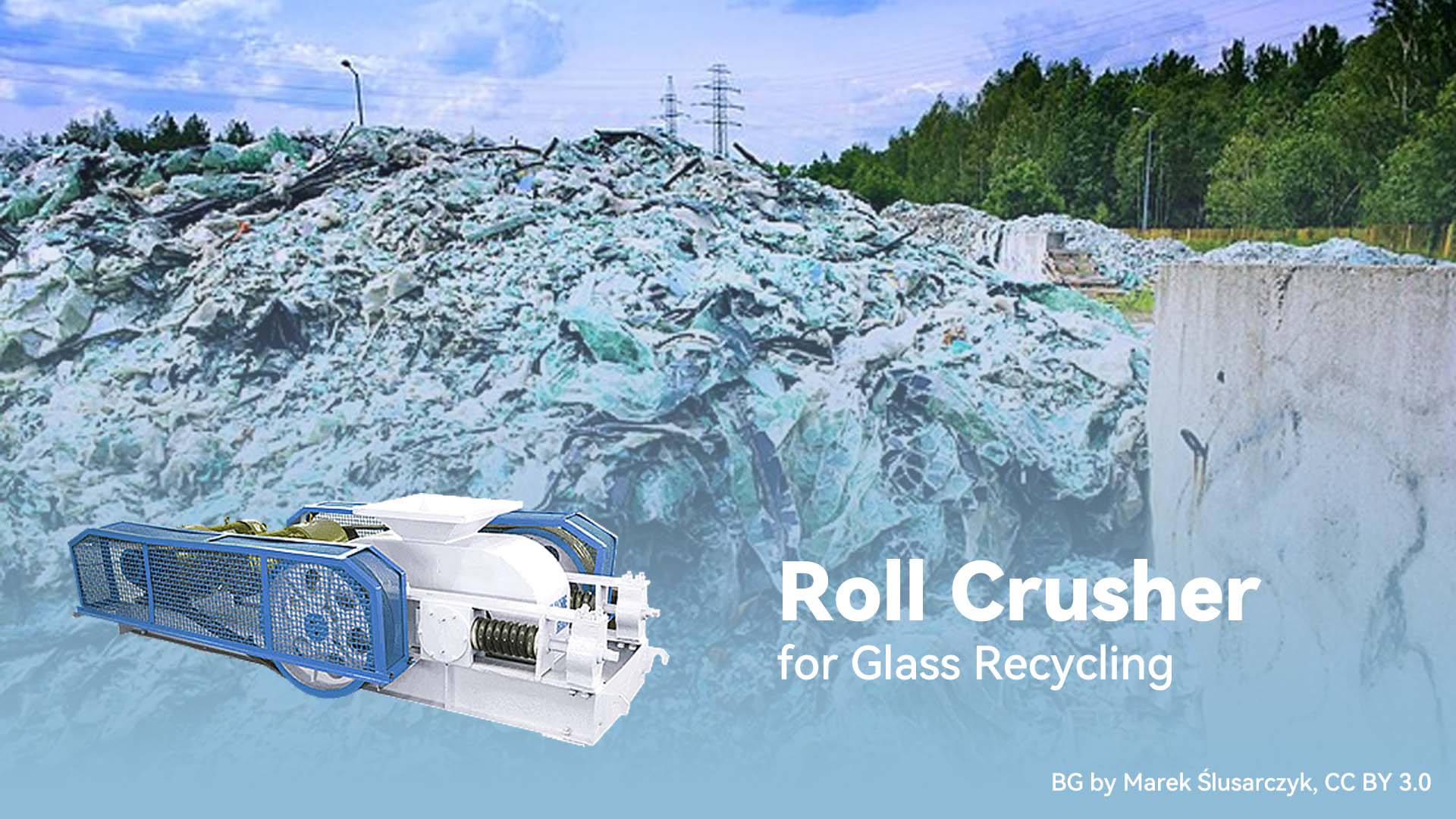

Roll crusher for glass recycling

The second advantage lies in metal separation efficiency. Impact Crushers' violent fragmentation embeds aluminum caps and rings into glass particles, reducing magnetic separation effectiveness to 85%. Roll Crushers' gradual crushing keeps metal contaminants intact, achieving 99%+ separation rates because bottle caps simply flatten rather than shatter, making them easily removable by subsequent sorting systems.

The operational genius of Roll Crushers lies in their 15-50 rpm rotation speed, which allows glass to break along its natural cleavage planes. This controlled fracturing mimics how glass naturally fails under stress, producing clean fractures rather than the random micro-cracks caused by high-impact methods. The result is cubical glass fragments with smooth edges that flow better in furnace charging systems and reduce wear on conveying equipment.

Adjustable roll pressure (50-200kN) enables processing diverse glass types without over-fragmentation. Thin-walled bottles require lower pressure to achieve clean breaks, while thick float glass needs higher compression. This adaptability comes from the mechanical advantage of hydraulic or spring-loaded roll systems that automatically maintain optimal crushing force as material hardness fluctuates, unlike the fixed energy input of impact crushers.

Waste Glass Sorting Solutions

Efficient Crushing of Container Glass (Bottles & Jars)

The V-profile roller surface with engineered tooth patterns effectively prevents glass containers from rolling during the crushing process. This specialized geometry ensures direct force application, achieving over 90% single-pass breakage efficiency while minimizing energy consumption. The integrated magnetic separation belt operates synchronously with the crushing cycle, automatically removing metal caps with exceptional precision to maintain residual metal content below 0.1%, meeting stringent food-grade recycling standards.

Advanced sensor systems monitor the glass flow to optimize roller speed and pressure in real time, adapting to variations in glass thickness and container shapes. This intelligent adjustment prevents material jamming while maintaining consistent output quality, crucial for downstream glass wool manufacturing or cullet-based new bottle production where material purity directly impacts product performance.

Pre-Crushing Technology for Tempered Glass

The multi-stage roller system features graduated compression zones that progressively release the internal stress of tempered glass through controlled fracturing. This step-wise approach significantly reduces the risk of explosive fragmentation, protecting both equipment integrity and operator safety. The gradual energy dissipation method allows collected fragments to maintain larger, more uniform particle sizes ideal for subsequent refinement processes.

For specialized applications like automotive windshield recycling, an optional pre-heating chamber gently raises the temperature of PVB interlayers to approximately 60-80°C. This thermal treatment sufficiently softens the polymer bonding layer without compromising glass structural properties, enabling clean separation of glass and plastic components. The temperature-controlled system prevents thermal shock to the glass while ensuring optimal delamination efficiency for high-value material recovery.

Low-Dust Processing for Float Glass

The fully enclosed crushing chamber combined with negative pressure dust control creates a contained processing environment that meets the European WEEE Directive's strict particulate emission limit of ≤10mg/m³. This hermetic design contains glass microparticles while allowing continuous material flow, effectively balancing production throughput with environmental compliance. The system's air curtain technology at material entry and exit points further prevents fugitive dust emissions during loading and discharge operations.

Patented multi-stage filtration captures dust particles across different size ranges, with HEPA final filters ensuring exhaust air quality. The captured glass dust can be recycled into specialty applications like reflective road markings or glass ceramics, creating additional value streams from what would otherwise be waste. Real-time particulate monitoring provides operational feedback to maintain optimal crushing parameters while ensuring consistent emission control performance throughout processing cycles.

Key Performance Enhancement Technologies

Hydraulic Gap Adjustment System

The hydraulic gap adjustment system revolutionizes precision crushing by dynamically adjusting the distance between crushing rollers in real-time. This technology automatically compensates for variations in material thickness, such as transitioning between different glass bottle types (beer bottles to wine bottles), while maintaining consistent output granularity within the 5-20mm range. The system's microprocessors continuously monitor compression forces and material flow characteristics to make instantaneous adjustments.

Advanced overload protection mechanisms represent another critical feature of modern crushers. When encountering non-crushable contaminants like metal fragments, the system triggers an automatic gap expansion within 0.5 seconds. This rapid response prevents costly damage to roller surfaces and significantly reduces unplanned downtime, while maintaining operational safety standards. The hydraulic system's self-diagnostic capabilities further enhance equipment reliability by predicting maintenance needs before failures occur.

Value-Added Product Integration

Innovative crushing plants now combine roll crushers for primary reduction with vertical shaft impactors (VSI) for precise shaping, creating specialized glass sands in the 40-70 mesh range. These premium products serve as raw materials for high-value applications such as reflective coatings and filtration media, commanding price premiums exceeding 30% compared to standard recycled glass. The integrated process achieves superior particle shape characteristics unattainable through single-stage crushing.

Practical implementations demonstrate the economic benefits of this approach. One European recycling facility reported a €15 per ton profitability increase after adopting the dual-stage system, compared to traditional furnace recycling alone. The technology enables operators to diversify product portfolios while optimizing overall plant economics, with the flexibility to adjust production ratios between standard cullet and specialty sands based on market demand fluctuations.

Environmental Compliance & Regulatory Adaptability

WEEE Directive Compliant Design

The stone crusher integrates full-enclosure construction with HEPA-grade dust filtration, achieving industry-leading particulate control with measured emissions as low as 8mg/m³. This sealed architecture prevents fugitive dust release while maintaining operational visibility through reinforced observation windows.

Specialized lead-crystal glass containment systems employ chromium-plated steel sleeves to isolate heavy metal components, exceeding EU RoHS thresholds. The dual-layer isolation mechanism ensures zero material cross-contamination during processing of electronic waste or hazardous demolition debris.

Energy Efficiency Benchmarking

Advanced direct-drive transmission technology enables a 22kW power consumption for 20-ton hourly throughput, demonstrating 40% energy savings versus conventional impact crushers. Variable frequency drives dynamically adjust crushing forces based on material hardness profiles, minimizing idle power drains.

An optional thermal recovery module captures kinetic energy from the crushing chamber, converting residual heat into pre-drying capacity for moisture-laden materials. This auxiliary system automatically activates when processing substrates exceeding 5% humidity, reducing subsequent drying-stage energy demands by up to 15%.

Success Stories and ROI Analysis

European Recycling Plant Retrofit Project

The recycling facility was facing a critical challenge with their existing impact crusher system, which resulted in a 28% rejection rate at the smelting furnace due to powder contamination and metal impurities. This operational inefficiency not only caused material waste but also increased disposal costs and energy consumption. After thorough technical evaluation, the plant implemented a strategic equipment upgrade featuring a dual-motor roll crusher combined with electromagnetic iron separators.

The transformation delivered remarkable results, with material purity jumping from 72% to 95%, now fully compliant with O-I Group's stringent procurement standards. Beyond quality improvements, the new system generated €46,000 in annual savings through reduced waste disposal fees and optimized energy usage. This case demonstrates how targeted equipment selection can simultaneously solve technical challenges while delivering substantial financial returns in industrial recycling operations.

Mobile Glass Recycling Unit

A innovative solution was developed for urban waste management using vehicle-mounted roll crushers to process beverage bottles directly in entertainment districts during nighttime operations. The system efficiently crushes glass bottles into 8mm cullet particles on-site, eliminating the need for transporting intact containers. This approach addresses both spatial constraints in crowded city centers and the economic burdens of traditional waste collection methods.

Operational data revealed the mobile crushing unit achieved 60% reduction in transportation costs compared to conventional bottle collection systems. By processing material at the source, the solution not only improves logistics efficiency but also enhances the overall economics of glass recycling. The project showcases how adaptable crushing technology can create sustainable urban waste management models with immediate financial benefits.

Future Trends: Intelligent Upgrades

AI-Powered Visual Sorting

Modern stone crushers are integrating near-infrared (NIR) camera systems that can accurately distinguish between different materials in real-time. These advanced sensors detect impurities like ceramic fragments or inferior quality stones with remarkable 99.5% accuracy, triggering precise air jets to remove unwanted particles from the production line. This technology significantly improves the purity of crushed aggregates while reducing manual quality control requirements. The implementation of AI vision systems represents a major leap forward in mineral processing technology. By combining spectral analysis with machine learning algorithms, these systems continuously improve their recognition capabilities, adapting to new material types and geological variations without requiring hardware modifications. This results in consistently high-quality output that meets strict industrial standards for construction materials and metallurgical processes.

Digital Twin Optimization

Digital twin technology is revolutionizing how crushing parameters are optimized. Engineers now create virtual replicas of entire crushing systems to simulate how adjustments to roller gaps or rotational speeds will affect particle shape and size distribution. These simulations can predict outcomes with such accuracy that operators can pre-configure machines for specific material types before physical processing begins. The practical benefits of digital twins extend far beyond initial setup. By analyzing historical performance data and running predictive scenarios, these systems can recommend parameter adjustments that improve furnace feeding efficiency by up to 15%. This digital approach reduces trial-and-error in production environments, minimizing material waste while maximizing throughput and energy efficiency in industrial crushing operations.
