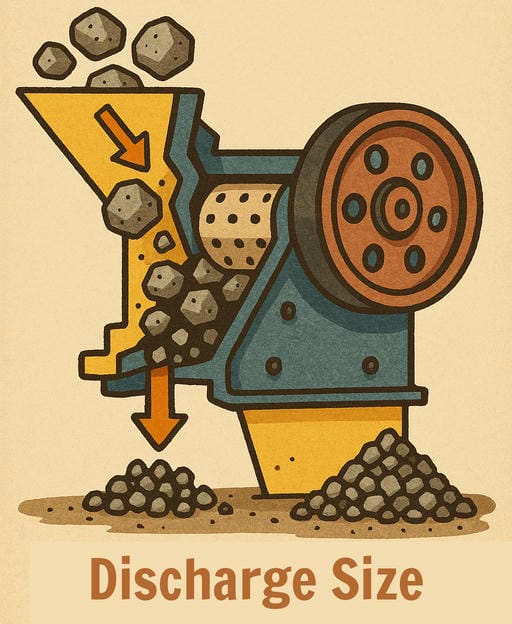

Discharge Size

The Defining Characteristic of Crushed Products

Discharge size represents the most visible and measurable result of crushing operations, determining material suitability for downstream processes and final applications. This fundamental parameter directly influences crusher selection, operational settings, and overall system design across mining, construction, and recycling industries.

Discharge Size is output size.

Technical Definition and Measurement Standards

Discharge size specification follows industry-standard measurement conventions, typically expressed as:

1) the square mesh opening that passes 80% of product (d80),

2) maximum dimension of any particle, or

3) complete particle size distribution curves.

Modern automated systems employ laser diffraction analysis for real-time size monitoring, while traditional operations rely on sieve analysis according to ISO standards. The discharge size directly correlates with crusher settings - jaw crushers adjust via closed-side setting, while cone crushers use both CSS and eccentric throw.

Equipment-Specific Size Control Mechanisms

Different crusher types employ distinct discharge size control methods. Jaw crushers utilize adjustable discharge openings with typical ranges from 50-200mm. Cone crushers combine adjustable crushing chambers with variable eccentric speeds to produce 5-50mm outputs. Impact crushers control size through adjustable breaker plates and rotor speeds (20-50mm typical). Advanced models now incorporate hydraulic CSS adjustment that can be modified during operation to compensate for wear or feed variations.

Operational Factors Affecting Discharge Size

Multiple variables influence actual discharge size beyond machine settings: feed material hardness (Mohs scale) can alter output by 15-25%, moisture content affects particle fracture patterns, and feed gradation impacts inter-particle crushing efficiency. Modern control systems account for these factors through real-time adjustments - a 10% increase in feed size may require 5-8% CSS reduction to maintain target discharge specifications. The relationship follows: Discharge Size ≈ CSS × (1 + (Wi/100)), where Wi represents material work index.

Advanced Size Control Technologies

Current innovations include:

1) Automated size monitoring systems using machine vision to continuously measure output,

2) Predictive size control algorithms that adjust parameters based on feed characterization,

3) Self-learning systems that optimize for multiple size fractions simultaneously.

Some tertiary crushers now achieve ±2mm consistency on 10mm product through closed-loop controls integrating particle size analyzers with hydraulic CSS adjustment.

Application-Specific Size Requirements

Construction aggregates demand strict control of particle shape and size distribution (0-5mm, 5-10mm fractions). Mineral processing requires specific liberation sizes (typically 50-80% passing 75μm). Recycling applications often need precise sizing to meet recycled material specifications (e.g., 10-30mm for RDF). Emerging smart crushing plants automatically adjust discharge sizes to match real-time market demands or downstream process requirements.
