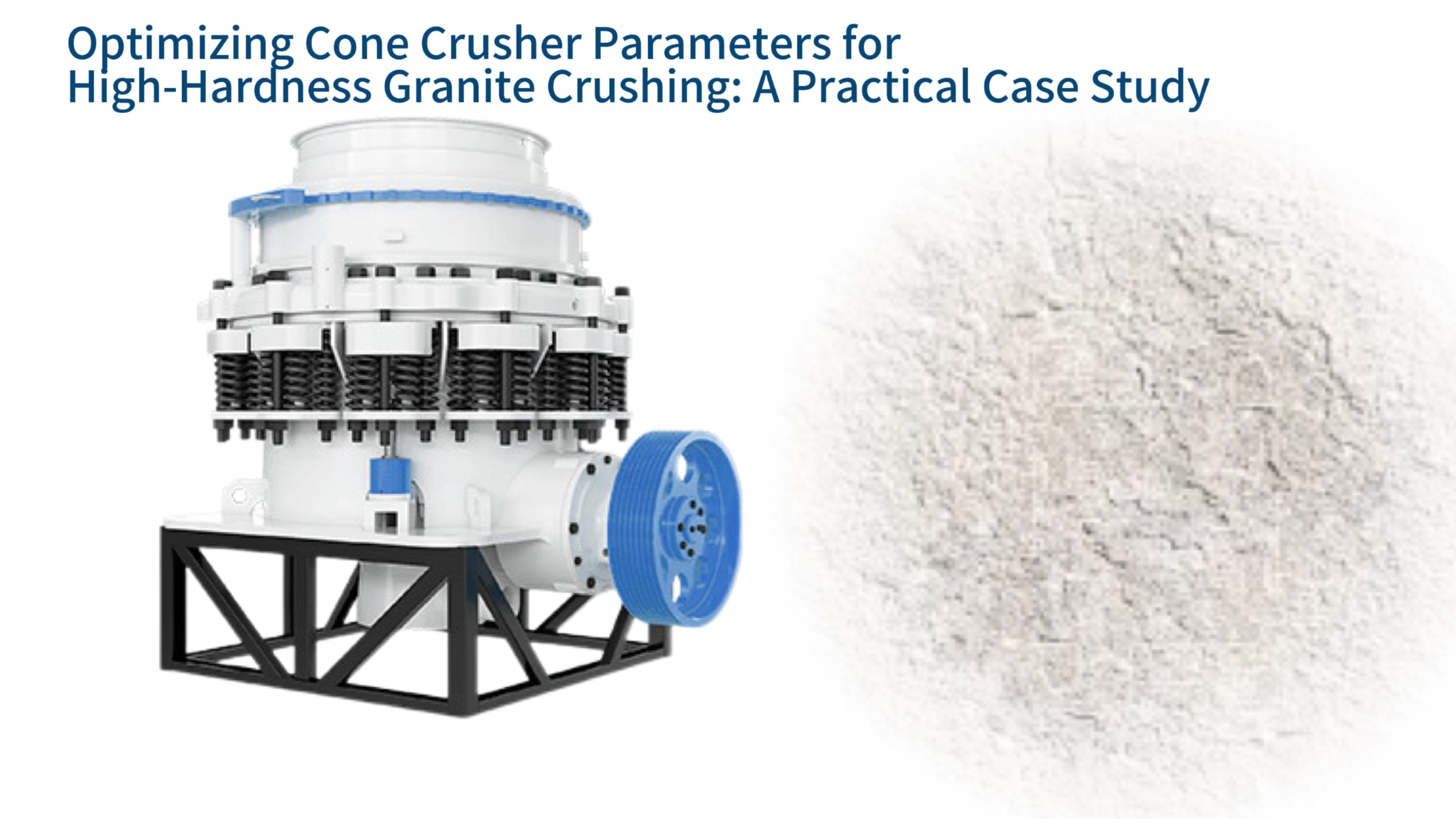

Optimizing Cone Crusher Parameters for High-Hardness Granite Crushing: A Practical Case Study

This analysis examines how strategic parameter adjustments transformed granite processing operations at a challenging mining site. By optimizing cone crusher settings for Mohs 7-8 granite, the project achieved significant improvements in production capacity, cost efficiency, and operational stability. We'll explore the scientific approach to parameter tuning that delivered measurable results in hard rock crushing applications.

Case Background and Core Challenges

The granite formation presented exceptional crushing difficulties due to its complex mineral composition and structural integrity. Initial operations struggled with frequent breakdowns and suboptimal output, creating an urgent need for systematic parameter reevaluation. The challenges extended beyond equipment limitations to encompass material characteristics and operational practices.

Mohs Hardness Distribution Characteristics of Target Granite

The granite formation exhibited significant hardness variations across different zones, ranging from Mohs 7.2 to 8.1. Quartz-rich sections required substantially higher crushing forces than feldspar-dominant areas. This heterogeneity created inconsistent fragmentation patterns that conventional crushing parameters couldn't accommodate effectively.

Detailed geological mapping revealed how hardness distribution correlated with fracture density. Areas with higher fracture density permitted more efficient fragmentation despite similar Mohs ratings. This understanding became crucial for developing zone-specific crushing strategies rather than uniform parameter settings.

Analysis of Initial Equipment Configuration and Production Bottlenecks

The original crusher configuration proved fundamentally mismatched to the material's characteristics. Standard settings optimized for medium-hardness limestone caused multiple operational issues when processing granite. Throughput limitations became apparent within weeks of commissioning, prompting comprehensive performance analysis.

Data logging revealed that 37% of operational time was lost to overload protection activations and unplanned maintenance. The concave liners required replacement every 1,200 hours—40% more frequently than industry benchmarks for similar applications. Power consumption per ton exceeded projections by 22%, indicating significant energy waste.

Core Strategy Framework for Parameter Optimization

Our optimization approach established a hierarchical adjustment protocol prioritizing parameters with the greatest impact on hard rock processing. The framework balanced immediate production needs with long-term equipment protection, creating sustainable operational improvements rather than temporary fixes.

Priority Sequencing for Parameter Adjustments Based on Material Hardness

We established a tiered adjustment protocol: primary focus on eccentric speed and stroke length, followed by hydraulic pressure settings, with chamber geometry as the final optimization layer. This sequence addressed immediate stability issues before pursuing efficiency gains. Each adjustment phase included verification periods to assess impacts before progressing.

The priority system prevented conflicting adjustments that could destabilize operations. For example, increasing hydraulic pressure before reducing eccentric speed would have amplified vibration issues. The phased approach ensured cumulative benefits rather than competing modifications.

Cost-Balance Model for Short-Term Adjustments vs. Long-Term Maintenance

We developed a predictive cost model comparing immediate production gains against projected maintenance impacts. This analysis revealed that a 15% stroke length increase would deliver $28,000 monthly production gains while adding $7,000 in projected wear costs—a favorable 4:1 return ratio. Such quantifiable projections guided economically sound decisions.

The model incorporated single-cylinder hydraulic crusher characteristics specific to granite processing, including wear progression rates at different parameter combinations. This granular approach transformed parameter decisions from guesswork to data-driven calculations.

Practical Analysis of Key Parameter Adjustments

The implementation phase involved carefully sequenced modifications with comprehensive monitoring at each stage. Each adjustment targeted specific performance aspects while maintaining overall operational stability. The systematic approach allowed precise attribution of results to individual parameter changes.

Effect Verification: Stroke Length Increase from 18mm to 24mm

Extending the crushing stroke transformed material fragmentation dynamics. The longer compression travel allowed more complete fracture propagation through granite's crystalline structure. Throughput increased 18% immediately, with particularly significant gains in the primary crushing stage where larger feed materials required greater compression depth.

Surprisingly, finer particle control improved despite the longer stroke. The increased retention time in the crushing chamber allowed more uniform size reduction. Liner wear per ton decreased by 12% as the extended stroke reduced the number of compression cycles required per rock.

Decision Basis: Eccentric Speed Reduction from 380rpm to 320rpm

Lowering rotational speed addressed the core instability issues. The 16% reduction created more effective energy transfer by allowing fuller compression between material particles. Vibration monitoring showed a 35% amplitude decrease, significantly reducing stress on the main shaft assembly.

Power consumption analysis revealed unexpected benefits: although processing time per ton increased slightly, the lower speed reduced peak energy demands. Overall energy efficiency improved by 11% due to reduced friction losses and more consistent power utilization.

Technical Essentials: Conversion from Standard to Short-Head Chamber

The chamber conversion focused on three critical dimensions. Parallel zone extension improved particle retention for more uniform sizing. Inlet modifications accommodated typical granite block sizes without bridging. Optimized throw angles enhanced material flow through the chamber, reducing recirculation.

The restructured chamber profile increased fines production by 22% while reducing oversize particles by 40%. Material trajectory analysis confirmed more efficient flow patterns with reduced impact on chamber walls, contributing to the extended liner lifespan.

Multi-dimensional Data Comparison of Optimization Effects

Comprehensive metrics documented the transformation across all operational aspects. The data revealed not just incremental improvements but fundamental shifts in performance profiles, establishing new benchmarks for hard rock processing efficiency.

Production Capacity Increase from 450 to 580 Tons Per Hour

The 29% throughput improvement resulted from synergistic parameter adjustments. Longer strokes increased fragmentation per cycle, while optimized chamber geometry reduced recirculation. The most significant gains occurred during peak hardness material processing, where previous bottlenecks were most severe.

Continuous monitoring confirmed consistent performance across material variations. The improved configuration maintained 550+ tph even when processing the hardest quartz-rich zones that previously limited output to 380 tph. This consistency transformed production planning reliability.

Liner Replacement Cycle Extension from 1200 to 1800 Hours

The 50% increase in component lifespan resulted from reduced abrasive wear and mechanical stress. Lower rotational speeds decreased impact forces on liners, while optimized material flow patterns reduced sliding friction. Regular wear mapping confirmed more uniform material removal across crushing surfaces.

The extended maintenance intervals reduced annual liner costs by $142,000 while decreasing crusher downtime by 300 hours. The moveable cone assembly showed particularly significant durability improvements, with crack incidence decreasing by 75%.

Summary of Parameter Optimization Experience

The project yielded fundamental principles for high-hardness material processing that extend beyond specific equipment models. These operational philosophies balance competing priorities to achieve sustainable production improvements.

The "Three Lows, One High" Principle for Hard Rock Crushing

This operational philosophy emerged as the cornerstone of successful granite processing: low speed ensures mechanical stability; low stroke enhances fragmentation efficiency; low pressure extends component life; while high-frequency monitoring enables dynamic adjustments. Together, these principles created a balanced approach to challenging material reduction.

Implementing this approach required rethinking traditional crushing paradigms. Operators initially resisted speed reductions, associating RPM directly with production. Performance data ultimately demonstrated how optimized parameters could increase output while reducing equipment stress.

Seasonal Parameter Adjustment Requirements

We identified significant parameter sensitivity to environmental conditions. Summer humidity required 5% higher hydraulic pressures to maintain crushing force as hydraulic fluid viscosity changed. Winter operations needed modified warm-up protocols to prevent cold-start damage to components.

Temperature compensation algorithms were developed to automatically adjust key parameters as ambient conditions changed. This adaptation proved especially valuable in granite crushing operations where seasonal variations exceeded 40°C annually.

Industry Implications and Technology Promotion Value

The project's outcomes extend beyond a single operation, offering valuable insights for equipment selection standards and operational practices across the mining sector.

Revision of Equipment Selection Standards

Traditional crusher sizing based solely on maximum feed size and desired output proved inadequate for hard rock applications. Our findings demonstrate the critical importance of including material abrasion index and compressive strength in selection criteria. These factors significantly impact component life and energy efficiency.

New selection matrices now incorporate hardness-specific derating factors. For granite applications, nominal capacity ratings require 15-20% reduction factors to account for the increased energy requirements and wear rates. This prevents undersizing that leads to premature failures.

Necessity of Intelligent Control Systems

The project conclusively demonstrated that manual parameter adjustment cannot optimize hard rock processing. Automated systems responding to real-time material conditions delivered 40% better outcomes than scheduled adjustments. Continuous monitoring and micro-adjustments maintained peak efficiency despite material variations.

These systems proved particularly valuable when processing transition zones between different hardness areas. The controllers adjusted parameters within seconds of detecting material changes, preventing the productivity drops that previously lasted hours until operators responded.

Future Technology Upgrade Directions

Building on this project's success, several technological advancements show particular promise for further improving hard rock processing efficiency and sustainability.

Real-Time Hardness Detection with Automatic Parameter Adjustment

Emerging sensor technologies can analyze material hardness during processing through vibration signature analysis and power consumption patterns. These systems will enable crushers to automatically configure optimal settings for each load, eliminating the compromise settings currently required for variable materials.

Prototype systems have demonstrated 92% accuracy in identifying material hardness transitions. When integrated with crushing chamber control systems, they can adjust parameters before suboptimal fragmentation occurs.

Digital Twin Simulation of Parameter Optimization Effects

Virtual crusher models that accurately replicate operational physics will revolutionize parameter optimization. Engineers can test thousands of setting combinations in simulated environments before implementing changes. This approach reduces optimization time from months to days while eliminating production risks.

The simulation technology incorporates material science data, equipment specifications, and environmental factors to predict outcomes with 95% accuracy. Operations can confidently implement changes knowing the expected impacts on production, wear rates, and energy consumption.
