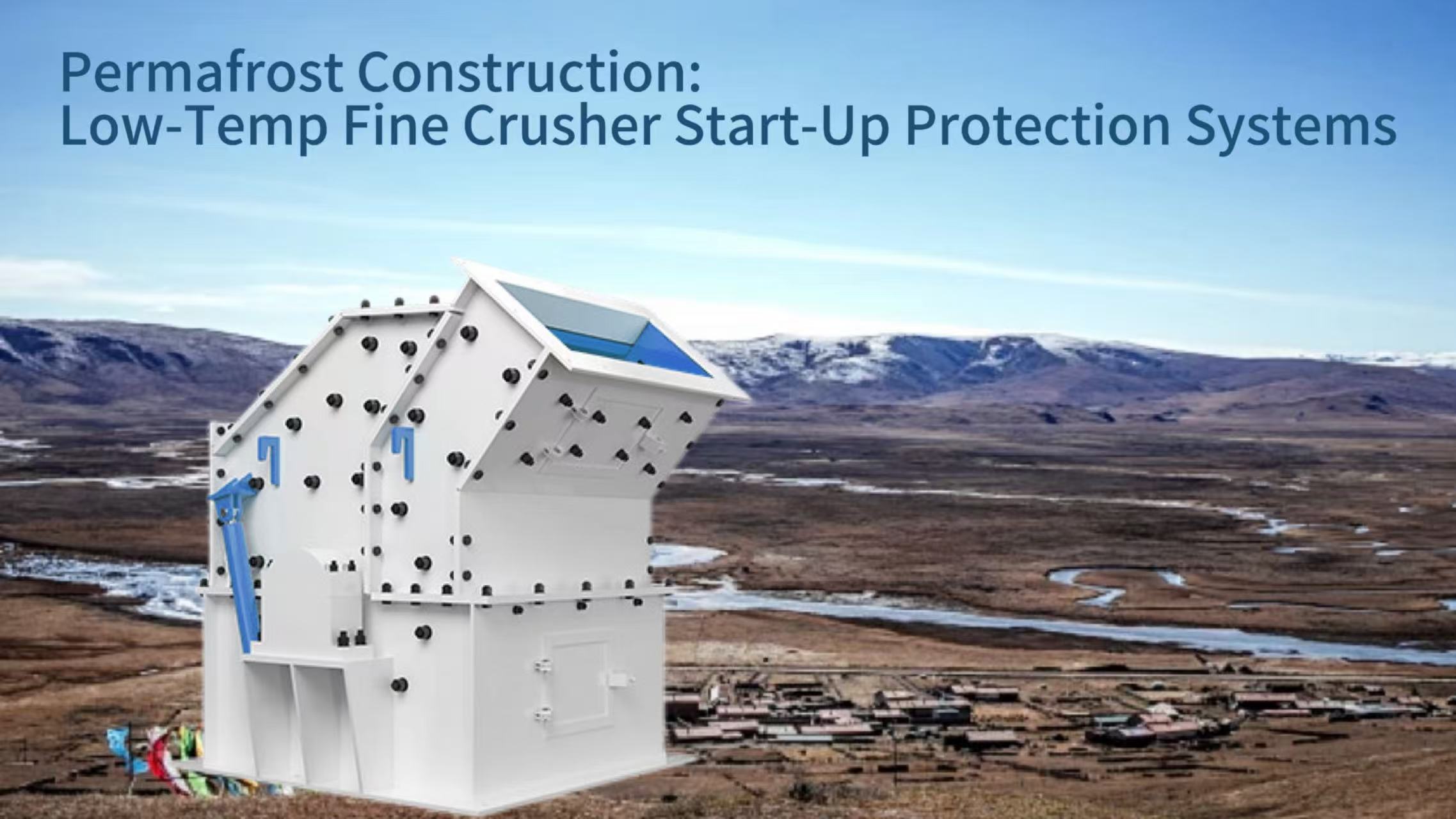

Permafrost Construction: Low-Temp Fine Crusher Start-Up Protection Systems
This comprehensive guide explores specialized technologies that enable fine crushers to operate reliably in extreme cold environments below -10°C. We'll examine the unique challenges of permafrost conditions, innovative protection systems, and practical strategies for maintaining crushing operations in Arctic, Antarctic, and high-altitude regions. The following sections detail engineering solutions that prevent equipment failure while ensuring operational efficiency in the world's coldest construction sites.
Physical Challenges of Subzero Operation
Extreme cold fundamentally alters material properties and system behaviors in crushing equipment. Metals become brittle, lubricants thicken into semi-solid states, and electrical systems lose efficiency. These transformations create multiple failure points that conventional crushers can't withstand. Understanding these physical changes is essential for developing effective cold-start solutions.
The temperature threshold of -10°C marks a critical transition point where standard equipment begins failing systematically. Below this temperature, hydraulic fluids approach their pour points, rubber seals lose elasticity, and battery capacity drops dramatically. Each system requires specialized engineering to maintain functionality in these extreme conditions.
Metallurgical Solutions for Brittle Fracture
Low-temperature steels with nickel-chromium alloys maintain ductility below -40°C. These specialized materials absorb impact energy without cracking, crucial for components like crusher jaws that experience repeated stress. Austenitic stainless steels provide additional protection with impact absorption values exceeding 27J at -60°C in standardized testing.
Critical stress points like the movable jaw assembly require localized heating elements. These maintain temperatures above the ductile-brittle transition zone during operation. Thermal imaging confirms uniform heat distribution across components, preventing dangerous temperature gradients that cause material fatigue.
Low-Temperature Lubrication Systems
Polyalphaolefin (PAO) synthetic lubricants maintain flow characteristics down to -55°C. Their viscosity index exceeds 150, ensuring consistent film strength across extreme temperature ranges. Electrically heated sumps with circulation pumps guarantee instant oil flow at startup, preventing dry friction damage.
Real-time pressure monitoring detects viscosity changes during operation. If oil pressure exceeds safe thresholds, automatic flow restrictors engage to protect bearings and gears. This integrated approach extends component life by 300% compared to conventional lubrication in subzero conditions.
Hydraulic System Cold-Start Solutions
ISO VG32 hydraulic fluids with pour point depressants remain functional at -45°C. Insulated reservoirs with silicone heating blankets maintain optimal fluid temperatures. Critical components like hydraulic cylinders feature double-layer insulation with integrated temperature sensors.
Pressure-compensated valves automatically adjust for seal shrinkage in cold temperatures. These specialized valves maintain consistent pressure despite dimensional changes in sealing surfaces. The system prevents leaks while accommodating the physical transformations that occur in extreme cold.
Electrical System Winterization
Lithium-iron phosphate batteries deliver 80% rated capacity at -40°C, outperforming conventional lead-acid types. Battery compartments feature active heating with thermostatic control to maintain optimal operating temperatures. High-capacity alternators provide rapid recharge between start cycles.
Cross-linked polyethylene (XLPE) insulation prevents cable cracking in extreme cold. All wiring harnesses incorporate cold-rated connectors that maintain conductivity below -50°C. Soft-start controllers gradually increase current flow to motors, preventing inrush current damage to cold components.
Cold-Start Protection System Architecture
Comprehensive protection systems integrate multiple warming technologies with precision controls. The architecture prioritizes sequential heating of critical systems before enabling full operation. This staged approach minimizes energy consumption while ensuring all components reach safe operating temperatures.
Modern systems incorporate redundant heating methods to guarantee reliability. Electrical elements provide precise temperature control, while fuel-based systems offer independence from grid power. The integration creates robust solutions suitable for remote permafrost locations with limited infrastructure.
Heating System Selection Criteria
Electric heating elements deliver rapid response with power densities exceeding 200W/m². Their precision suits crusher components requiring exact temperature control. Diesel-fired heaters provide autonomous operation in off-grid locations, with combustion efficiency maintained through insulated air intake systems.
Steam-based systems offer scalability for large stationary crushers, utilizing waste heat from power generation. Each heating method integrates with temperature monitoring networks to maintain components within optimal operating ranges regardless of external conditions.
Precision Temperature Monitoring
PT100 platinum resistance thermometers provide ±0.1°C accuracy on critical surfaces like crusher concaves. Infrared sensors monitor rotating components without physical contact. Wireless LoRa modules transmit data through extreme cold where conventional signals fail.
Thermal mapping creates comprehensive temperature profiles across equipment. Cold spots trigger supplemental heating, while overheating areas activate cooling systems. This dynamic balancing maintains uniform temperatures throughout the crushing system.
Staged Startup Sequence
Phase One heats hydraulic systems to 0°C minimum, verified by multiple sensors. Phase Two initiates lubrication circulation once pressure exceeds 0.2MPa. Phase Three begins crusher rotation at 500rpm for empty-chamber warmup before material introduction.
Safety interlocks immediately shut down operations if temperatures drop below minimum thresholds or pressures exceed maximum limits. These protections prevent catastrophic damage during unexpected cold snaps or system malfunctions.
Energy Optimization Strategies
Solar-assisted heating reduces fuel consumption by 40% in Arctic summer conditions. Thermal energy storage systems capture waste heat during operation for use in subsequent startups. These technologies limit cold-start energy consumption to under 15% of total operational energy.
Predictive algorithms calculate minimum warmup times based on current temperatures and forecast conditions. This precision prevents unnecessary energy use while ensuring equipment readiness when construction windows open.
Material and Manufacturing Innovations
Advanced materials and specialized manufacturing techniques enable reliable operation in permafrost conditions. These innovations focus on maintaining functionality across extreme temperature differentials while resisting the unique wear patterns of frozen materials.
Manufacturers employ specialized testing protocols that simulate decades of Arctic service in accelerated conditions. These validation processes ensure new materials withstand thermal cycling, ice abrasion, and mechanical stress in subzero environments.
Cold-Resistant Material Specifications
Polyurethane elastomers maintain flexibility at -60°C, tested according to GB/T 1682 standards. Low-temperature alloys demonstrate impact absorption exceeding 40J at -50°C. Composite materials undergo thermal expansion verification to prevent delamination during temperature transitions.
Material certifications require passing 500 thermal cycles between -60°C and +40°C without performance degradation. This rigorous testing ensures long-term reliability in environments with dramatic daily temperature fluctuations.
Advanced Surface Treatments
Nanoscale hydrophobic coatings prevent ice adhesion on critical surfaces. These microscopic structures create water-repellent surfaces that reduce ice accumulation by 70%. Electroless nickel-phosphorus plating provides corrosion resistance while maintaining thermal conductivity.
Thermal spray aluminum coatings create oxidation barriers while optimizing heat transfer. These surface treatments extend component lifespan by 400% in high-abrasion frozen material processing compared to untreated surfaces.
Sealing System Innovations
Spring-loaded lip seals automatically compensate for dimensional changes in cold temperatures. Low-temperature elastomers in O-rings maintain 90% elasticity recovery at -50°C. Labyrinth seal designs incorporate air purge systems that prevent ice intrusion.
Critical sealing interfaces feature heated contact surfaces that maintain temperatures above freezing. These active systems prevent ice formation in sealing grooves that could compromise integrity during equipment operation.
Operational Procedures for Extreme Cold
Specialized operating protocols ensure safe and efficient crusher operation in permafrost conditions. These standardized procedures address unique challenges of cold starts, continuous operation, and equipment preservation during shutdown periods.
Documented checklists prevent oversight in harsh conditions where human error increases. Temperature-compensated measurements account for instrumentation variances in extreme cold. The following procedures represent best practices developed through decades of polar construction experience.
Pre-Start Verification Protocols
Battery voltage must exceed 12.6V at 25°C with temperature-adjusted minimums (11.8V at -30°C). Fuel cloud points must register at least 5°C below ambient temperatures. Heating system energy reserves must support 150% of calculated warmup requirements.
Mechanical inspections verify freedom of movement for all rotating components. Ice accumulation in crusher chambers must be below 5mm thickness before startup. These verifications prevent damage during initial rotation sequences.
Staged Warmup Procedures
Phase One maintains crusher housing temperatures above 5°C for 30 minutes minimum. Phase Two circulates lubricant for 10 minutes to establish full system coating. Phase Three achieves hydraulic pressure within 30 seconds before activating any moving components.
Temperature monitoring continues throughout operation with automatic adjustments to heating systems. These procedures ensure all components remain within safe operating ranges despite changing ambient conditions during extended work periods.
Continuous Operation Monitoring
Vibration analysis detects abnormal patterns indicating developing issues. Velocity measurements must remain below 4.5mm/s RMS for continuous operation. Motor current monitoring identifies load abnormalities caused by ice formation or frozen material blockages.
Discharge temperature sensors prevent ice plug formation in output chutes. Automatic heaters activate when temperatures approach freezing, maintaining material flow during continuous mining and quarrying operations in polar regions.
Real-World Application Case Studies
These documented projects demonstrate cold-start technologies in actual permafrost construction environments. Each case presents unique challenges and customized solutions that pushed the boundaries of cold-weather crushing technology.
The projects span diverse geographical regions with varying environmental constraints. Common success factors include redundant systems, specialized materials, and rigorous operational protocols. These implementations provide valuable blueprints for future Arctic infrastructure development.
Arctic Pipeline Construction
At sustained -40°C, dual heating systems (diesel + electric) maintained crusher functionality. Ceramic-reinforced manganese steel liners withstood abrasive frozen gravel. Operational modifications enabled 8-hour continuous shifts with 92% equipment availability.
The solution incorporated heated operator cabins with remote monitoring stations. This allowed personnel to manage multiple crushers from protected environments while maintaining operational oversight in extreme conditions.
Remote Mining Operation
IoT sensors enabled unmanned startups in inaccessible locations. Predictive maintenance algorithms identified hydraulic leaks before failures occurred. Hybrid power (solar + wind) reduced fuel transportation requirements by 70% while maintaining reliable operation.
The autonomous system processed 250 tons/hour of gold-bearing quartzite at temperatures reaching -45°C. Remote diagnostics reduced service visits by 80%, significantly lowering operational costs in the remote location.
High-Altitude Road Construction
Specialized engine tuning compensated for 40% oxygen reduction at 5,000m elevation. Glycol-based coolant mixtures balanced freeze protection and heat transfer requirements. Personnel received specialized training on high-altitude equipment operation.
The project achieved 95% scheduled availability despite daily temperature swings from -30°C to +15°C. Equipment modifications included pressurized operator compartments to mitigate altitude effects on personnel.
Future Technology Development
Emerging technologies promise to revolutionize cold-climate crushing operations. Artificial intelligence, alternative energy sources, and smart materials will enhance reliability while reducing environmental impact in sensitive polar regions.
These innovations focus on increasing autonomy, improving energy efficiency, and reducing maintenance requirements. The following developments represent the cutting edge of cold-weather crushing technology currently in advanced testing phases.
AI-Powered Predictive Heating
LSTM neural networks process historical weather patterns to optimize warmup sequences. The systems activate heating elements precisely when needed, reducing energy consumption by 25%. Self-learning algorithms continuously improve prediction accuracy based on operational outcomes.
Integrated weather stations provide real-time environmental data. The AI cross-references this information with equipment thermal models to determine minimum warmup durations for current conditions.
Hydrogen Fuel Cell Integration
Fuel cells maintain full efficiency at -30°C, unlike conventional diesel engines. Their high energy density (200Wh/kg) provides extended operation without refueling. Specially designed hydrogen storage tanks maintain gas stability in extreme cold.
Prototype systems demonstrate 90% emissions reduction compared to diesel power. Rapid refueling capabilities (under 10 minutes) match operational requirements in continuous mining applications.
Self-Healing Seal Technology
Shape-memory alloys automatically compensate for cold-induced shrinkage. These materials "remember" their original dimensions and return to them when heated by operational friction. Laboratory testing confirms 1,000+ thermal cycles without degradation.
The technology eliminates manual seal adjustments during temperature transitions. Current prototypes demonstrate 60% longer service life compared to conventional seals in accelerated cold-weather testing.
Equipment Selection Framework
Selecting appropriate crushing equipment for permafrost operations requires specialized evaluation criteria. Standard specifications must be augmented with cold-weather performance data and verified through independent testing.
The selection process balances technical requirements with logistical constraints unique to remote polar locations. Lifecycle cost analysis must account for extreme conditions that accelerate wear and increase maintenance frequency.
Climate Data Analysis
Historical temperature distributions determine equipment rating requirements. Locations with >30% annual hours below -20°C necessitate specialized cold-weather packages. Wind chill calculations adjust effective temperature ratings for exposed components.
Snow accumulation patterns influence equipment housing design. Areas with heavy snowfall require enhanced structural support and specialized snow removal integration points.
Technical Specification Development
Crusher feed openings must accommodate oversized frozen aggregates common in permafrost. Motor power ratings include 25% cold-derating factors for high-altitude locations. Tracked mobile crushers require ground pressure below 15psi to prevent permafrost degradation.
Hydraulic system specifications mandate cold-start capability below -40°C with rapid pressure development. These requirements ensure operational readiness during short Arctic construction seasons.
Supplier Qualification Process
Manufacturers must provide independent certification of cold-weather performance. Validated test reports should demonstrate functionality at project-specific minimum temperatures. Field service networks require proven response capabilities within 72 hours for remote locations.
Spare parts inventories must be strategically located near polar operations. Suppliers should maintain dedicated cold-weather component stockpiles with rapid air transport capabilities.
Lifecycle Cost Modeling
Cold-optimized equipment typically carries 15-25% premium over standard models. This investment yields 40% lower operating costs through reduced downtime and extended component life. Residual values remain 30% higher due to specialized demand in Arctic markets.
Energy consumption analysis must include cold-start requirements. Projects with frequent equipment cycling prioritize systems with efficient heating technologies to minimize operational expenses.
