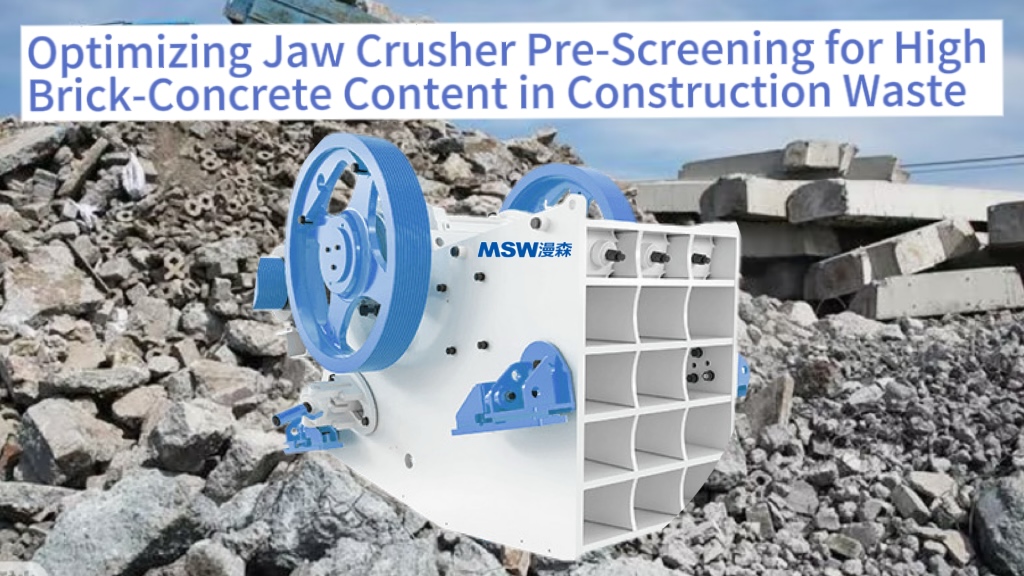

Optimizing Jaw Crusher Pre-Screening for High Brick-Concrete Content in Construction Waste

Optimizing Jaw Crusher Pre-Screening for High Brick-Concrete Content in Construction Waste

This content centers on optimizing the pre-screening processes of jaw crushers for construction waste with high brick-concrete content. It explores how material properties affect pre-treatment, delves into dual-phase crushing dynamics, addresses contaminant handling, discusses moisture regulation, and covers jaw crusher parameter tuning. Additionally, it details pre-screening system design, equipment durability improvements, and process integration methods—all aimed at boosting operational efficiency and enhancing material handling performance.

Material Characteristics Impacting Pre-Processing

When brick-concrete mixtures exceed 40% in construction waste, their physical properties differ significantly from natural aggregates. Brick's porous structure and concrete's higher compressive strength (50-100MPa) create uneven wear patterns on crusher components. The abrasion index (AI 0.3-0.5) demands specialized lining plate materials to maintain operational efficiency. This duality requires balancing force application between brittle brick fracture and concrete's ductile failure. Moisture content (3-8%) introduces additional complexity by altering particle adhesion characteristics, necessitating precise screen angle adjustments to prevent material caking.

The presence of embedded steel reinforcement (0.5-2% by volume) requires magnetic separation before primary crushing. Advanced systems integrate metal detectors with automatic toggle plate reversal mechanisms to eject tramp iron without stopping production. Wooden components (1-3% typical) demand pre-screening with anti-clogging screen designs. Pneumatic separation systems operating at 1200-1500rpm effectively remove light contaminants while maintaining throughput.

Dual-Phase Crushing Dynamics

Brick's lower tensile strength causes rapid fragmentation under compressive forces, while concrete's reinforced structure requires sustained energy input. This phase difference creates a bimodal particle distribution (5-15mm & 30-50mm) post-crushing, demanding specialized screen media configurations. Optimal processing requires dynamic adjustment of crusher parameters based on real-time material analysis. Infrared spectroscopy can identify brick-concrete ratios to automate setting changes, though manual calibration remains critical for mixed loads.

The interaction between compressive and shear forces requires careful chamber design. Modern crushers use finite element analysis (FEA) to model stress distribution across different material types. This computational approach enables manufacturers to pre-optimize crushing surfaces for specific waste compositions, reducing trial-and-error adjustments during operation.

Contaminant Management Strategies

Embedded steel reinforcement (0.5-2% by volume) requires magnetic separation before primary crushing. Advanced systems integrate metal detectors with automatic toggle plate reversal mechanisms to eject tramp iron without stopping production. Wooden components (1-3% typical) demand pre-screening with anti-clogging screen designs. Pneumatic separation systems operating at 1200-1500rpm effectively remove light contaminants while maintaining throughput.

For persistent organic contaminants, thermal desorption units operating at 400-600°C can volatilize hydrocarbons without damaging aggregate quality. This method proves particularly effective for painted wood and treated timber, achieving 99% contamination removal while maintaining material integrity for reuse applications.

Moisture Control Protocols

Humidity levels above 5% require heated screening decks (40-60°C) to prevent material bridging. Dual-slope screen designs with 18-22° angles optimize drainage while maintaining screening efficiency. Automatic water injection systems adjust based on real-time moisture readings. Closed-circuit drying systems using waste heat from crushers reduce moisture content by 2-3% before processing. This preconditioning minimizes screen blinding and improves downstream separation efficiency.

For extreme moisture conditions (>10%), vibrating fluidized bed dryers offer effective dewatering. These systems use counter-flow air streams to separate moisture from material streams without over-drying, preserving aggregate workability for subsequent processing stages.

Jaw Crusher Parameter Optimization

Traditional parameters for hard rock processing prove inefficient for brick-concrete mixtures. Dynamic adjustment of discharge settings and stroke profiles reduces energy consumption while maintaining product quality. The eccentric shaft speed reduction (250-300rpm) extends component life by 15-20%. Implementing a variable frequency drive (VFD) on the motor enables real-time adjustment of crushing forces. This adaptability proves crucial when processing variable feedstock common in construction waste streams.

The crushing chamber's geometry requires modification for mixed materials. Steeper nip angles (32-35°) improve brick fragmentation efficiency, while shallower angles (25-28°) prevent concrete over-crushing. Automated chamber profiling systems adjust these parameters based on real-time particle analysis.

Discharge Opening Calculation

The optimal discharge setting follows the formula: D = 1.3 × F (where F = maximum feed size). For 400mm feed, this yields a 120mm discharge opening. This ratio prevents excessive fines generation while maintaining throughput capacity. Automated hydraulic adjustment systems enable precise setting changes during operation. Laser measurement systems continuously verify discharge dimensions, ensuring compliance with downstream equipment requirements.

For variable feed sizes, adaptive control systems use machine vision to adjust discharge settings. Cameras mounted above the feed hopper analyze particle size distribution, triggering automatic adjustments to maintain optimal crushing ratios. This closed-loop system reduces manual intervention by 70%.

Stroke Profile Engineering

The stroke length formula S = 0.05B + 25mm (B = feed opening width) optimizes material progression through the crushing chamber. For a 900mm feed opening, this calculates to a 70mm stroke, balancing reduction efficiency and wear rates. Elliptical motion crusher designs enhance material bed formation, reducing individual particle stress concentrations. This geometry modification improves capacity by 12-18% compared to circular stroke profiles.

Variable stroke profiles adapt to material hardness. Soft starters with programmable acceleration/deceleration curves enable smooth transitions between different stroke patterns. This feature proves particularly beneficial when processing layered materials with alternating brick and concrete sections.

Power Management Systems

Energy consumption targets of 1.8-2.2kWh/t require precise motor load management. Soft-start systems reduce inrush currents by 40%, minimizing electrical infrastructure stress. Regenerative braking systems recover kinetic energy during deceleration phases. Hydraulic accumulator systems store excess energy during low-load periods for use during peak crushing phases. This buffering reduces grid power demand by 15-20% in variable feed scenarios.

Smart grid integration enables dynamic load shifting. During periods of low electricity demand, the system prioritizes energy-intensive processes like metal recovery. This demand-response capability reduces operational costs by 25-30% in regions with time-of-use pricing structures.

Pre-Screening System Design

Effective pre-screening removes fines and oversize materials before primary crushing. The screen aperture relationship (0.7-0.9 × discharge setting) minimizes recirculating loads. Dual-deck configurations (40mm + 80mm) enable simultaneous size separation and contaminant removal. Screen media selection impacts both efficiency and wear life. Polyurethane screens prove effective for wet materials, while steel mesh designs handle abrasive loads better. Open area percentages above 65% maintain throughput without sacrificing separation accuracy.

For high-capacity applications, multi-slope screens (20-25°) offer superior stratification. These designs use varying deck angles to separate particles by size more effectively than single-slope systems. The steeper upper sections break up material clusters, while flatter lower sections enhance fine particle screening.

Aperture Size Coordination

The pre-screen aperture should equal 80% of the jaw crusher's discharge setting to prevent undersize material re-entry. For a 120mm discharge, this requires 96mm pre-screen openings. This coordination reduces circulating load by 20-25%. Variable amplitude screening systems adjust vibration intensity based on material type. Higher amplitudes (8-10mm) improve sticky material processing, while lower settings (4-6mm) enhance fines separation efficiency.

Modular screen decks allow rapid aperture adjustment. Interchangeable panels with different hole sizes enable quick adaptation to changing feed compositions. This flexibility reduces downtime when processing materials with varying brick-concrete ratios.

Multi-Layer Screening Solutions

Triple-deck screens (20mm, 50mm, 100mm) enable precise particle classification. The top deck removes oversize steel, the middle deck separates concrete chunks, and the bottom deck grades fine aggregate. This configuration improves metal recovery rates by 30%. Flip-flow screen designs with elastic mesh effectively handle near-size particles. The alternating tension cycles prevent blindings in high-moisture applications, maintaining 85% screening efficiency even with 8% moisture content.

For ultra-fine separation, ultrasonic screening systems (20-40kHz) disrupt surface tension in wet materials. These high-frequency vibrations prevent particle agglomeration, achieving 95% efficiency in removing -2mm particles from recycled aggregates.

Screen Media Innovation

Laser-cut steel screens with self-cleaning slots reduce pegging in sticky materials. Rubber-coated apertures minimize noise while maintaining flexibility. For abrasive brick fragments, tungsten carbide inserts extend screen life by 300% compared to standard steel. Modular screen panels enable rapid replacement of worn sections. This design reduces downtime by 75% compared to full-screen replacements. Each panel incorporates wear indicators for proactive maintenance scheduling.

3D-printed screen media with optimized aperture geometries offer superior performance. Computer-aided design (CAD) tools create complex hole patterns that enhance material flow while reducing blind spots. These advanced screens maintain 90% open area even in high-wear applications.

Equipment Durability Enhancements

High brick content accelerates wear on critical components. Chromium-molybdenum alloy steel (HRC58-62) liners offer double the service life of traditional manganese steel. Wave-pattern tooth profiles reduce material slippage, improving crushing efficiency by 15%. Bearing systems require enhanced sealing (IP67) and lubrication (EP2 grease) to withstand abrasive dust. Temperature monitoring systems detect early failure signs, while vibration analysis identifies misalignment issues before catastrophic failure occurs.

For extreme abrasion environments, composite liners combining ceramic and steel offer 4x longer life. These liners use hard-facing technology to bond wear-resistant layers to structural steel backing, providing both durability and impact resistance.

Liner Material Advancements

Ceramic-embedded liners (Al₂O₃ 92%) withstand brick's sharp edges better than metallic options. These liners reduce weight by 40% while maintaining impact resistance. For concrete-dominated loads, martensitic steel (Cr15-20) provides optimal durability. Magnetic liners automatically collect wear debris, preventing accumulation in critical areas. This self-cleaning feature extends component life by maintaining consistent surface profiles.

Nano-coated liners with diamond-like carbon (DLC) coatings reduce friction by 80%. These coatings withstand temperatures up to 500°C, making them suitable for high-stress crushing applications. The reduced friction also lowers energy consumption by 10-15%.

Tooth Configuration Science

Curved tooth profiles create a shearing action that complements brick's fracture characteristics. Square-tooth designs work better for concrete's compressive failure. Hybrid configurations adapt to fluctuating feed compositions automatically. Laser cladding processes apply wear-resistant coatings (WC-Co) to high-stress areas. This surface hardening increases component life by 200-300% compared to through-hardening methods.

Modular tooth systems enable rapid profile changes. Operators can switch between different tooth configurations in under 30 minutes, adapting to sudden changes in feed composition. This flexibility reduces downtime by 40% in variable waste streams.

Bearing System Upgrades

Spherical roller bearings with C4 clearance handle thermal expansion in high-load applications. Oil-air lubrication systems deliver precise grease quantities (0.5g/hr) to critical zones. Temperature sensors trigger automatic cooling when bearings exceed 75°C. Trunion-mounted bearings distribute loads more evenly than traditional pillow block designs. This configuration reduces edge stress by 30%, extending bearing life in continuous operation scenarios.

For mobile units, sealed bearing units with integrated sensors offer real-time condition monitoring. These smart bearings transmit temperature and vibration data wirelessly to control systems, enabling predictive maintenance schedules that reduce unplanned downtime by 60%.

Process Integration Strategies

Effective pre-processing requires synchronization with downstream equipment. The jaw crusher's discharge profile must match the impact crusher's feed requirements (<80% <100mm). Wind sifters operating at 8-10m/s separate light contaminants from the 10-30mm fraction, improving metal recovery rates by 40%. Integrated control systems adjust screen frequencies and conveyor speeds based on real-time particle analysis. This automation maintains optimal material flow through the entire processing chain, from primary crushing to final product stockpiling.

For complete process optimization, digital twins simulate entire material flows. These virtual models predict bottlenecks and energy consumption patterns, enabling pre-emptive adjustments. Cloud-based platforms aggregate data from multiple sensors, providing operational insights that improve overall plant efficiency by 20-25%.

Downstream Equipment Synergy

The pre-screened 10-30mm fraction feeds directly into air classifiers operating at 12-15m/s. This velocity range separates light plastics (0.8-1.2g/cm³) from heavy aggregates (2.3-2.8g/cm³). The cleaned aggregate stream then enters secondary crushing with optimal density. Dense medium separation (DMS) units process the 30-50mm fraction to recover high-value metals. Ferrous recovery rates exceed 95% using magnetic separation, while non-ferrous metals require eddy current systems operating at 3000-4000rpm.

For concrete-rich fractions (>60%), vertical shaft impactors (VSIs) provide optimal shaping. These crushers use rock-on-rock crushing principles to produce cubical aggregates suitable for high-grade concrete. The resulting material meets stringent quality standards for structural applications.

Dust Suppression Integration

Closed-circuit dust collection systems with 99.9% efficiency ratings maintain air quality. Baghouse filters with PTFE membranes capture particles down to 1μm. The collected dust (<5% moisture) returns to the process as filler material, achieving zero waste discharge. Water misting systems (50-70μm droplets) suppress airborne dust without creating slurry. These systems activate automatically when particle concentrations exceed 5mg/m³, maintaining compliance with environmental regulations.

For outdoor operations, wind fences reduce dust dispersion by 70%. These barriers use perforated sheets to disrupt airflow patterns, containing particulate matter within the processing area. Combined with misting systems, this approach achieves 95% dust control efficiency.

Energy Recovery Systems

Waste heat from crushers preheats incoming feed material, reducing energy demand by 10-15%. Organic Rankine Cycle (ORC) systems convert low-grade heat into electricity, providing 5-8% of total plant power requirements. Kinetic energy recovery from conveyor belts uses regenerative braking to store energy in flywheel systems. This stored energy powers auxiliary equipment during low-demand periods.

Solar-powered pre-screening stations reduce grid dependence in sunny climates. Photovoltaic panels integrated into conveyor covers provide shade while generating 20-30% of the system's power needs. Battery storage systems buffer this energy for nighttime operation.
