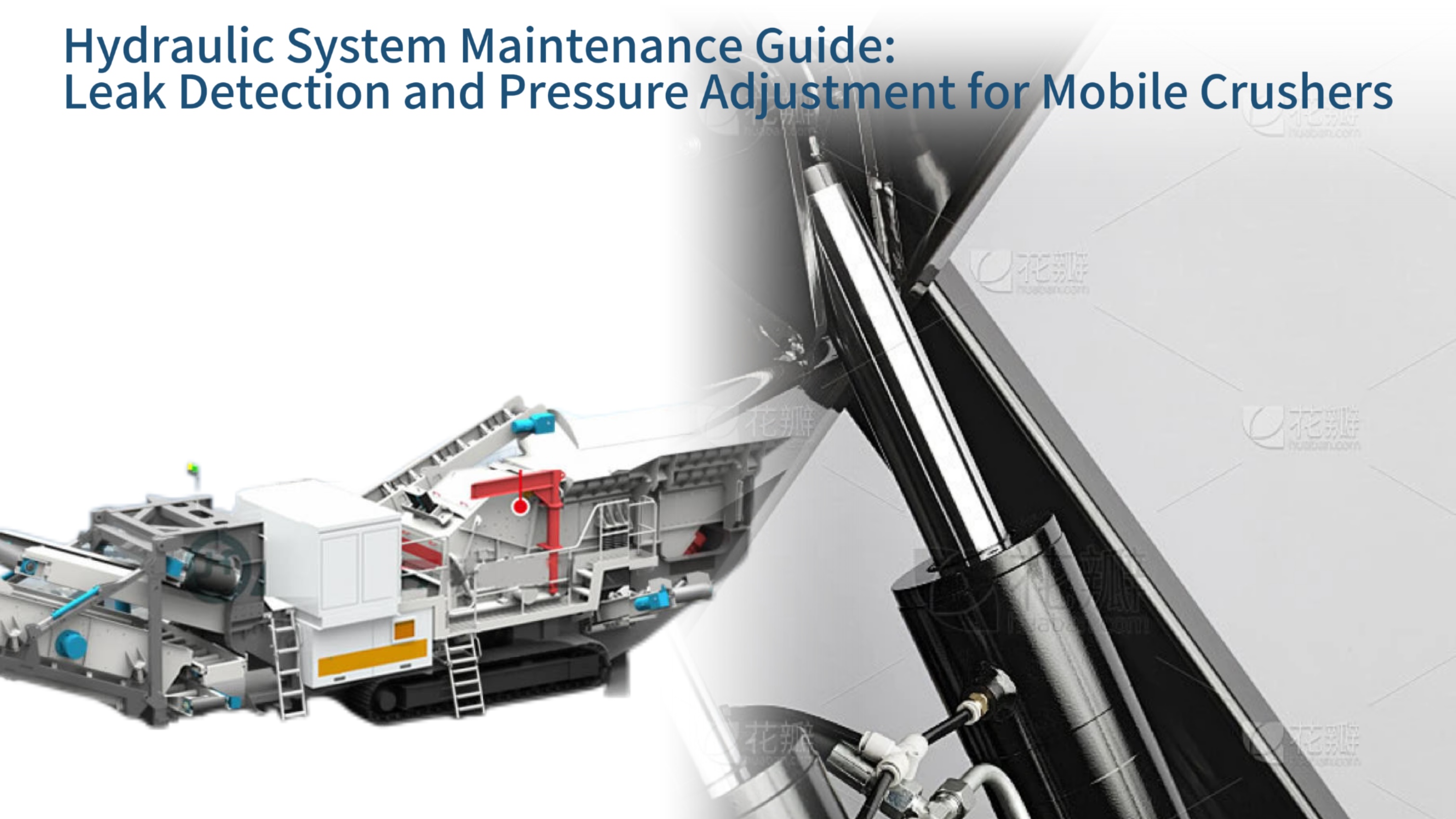

Hydraulic System Maintenance Guide: Leak Detection and Pressure Adjustment for Mobile Crushers
Proper hydraulic system maintenance is essential for ensuring the reliability and efficiency of mobile crushing operations. This comprehensive guide explores proven techniques for detecting leaks and optimizing pressure settings in mobile crushers. By implementing these standardized procedures and leveraging modern diagnostic tools, operators can prevent costly downtime, extend component lifespan, and maintain consistent crushing performance even in demanding operational environments.
Fundamental Principles of Hydraulic Systems
Hydraulic systems serve as the circulatory system of mobile crushers, converting mechanical energy into precise fluid power that controls critical functions. Understanding how these systems operate provides the foundation for effective maintenance and troubleshooting strategies.
Core Functions in Crushing Operations
In mobile crushers, hydraulic systems perform two vital functions: transferring power to crushing components and providing overload protection. The hydraulic system absorbs impact shocks during hard rock crushing, preventing catastrophic damage to mechanical parts. This protective function significantly extends the lifespan of expensive components like the movable jaw assembly and crushing chamber.
Critical Components and Failure Patterns
Hydraulic pumps create system pressure, while control valves direct fluid flow to cylinders that position crushing components. Common failure points include pump cavitation from air ingress, valve spool sticking due to contamination, and cylinder seal degradation. Recognizing early warning signs like pressure fluctuations or unusual noises helps prevent complete system failures.
Hydraulic Fluid Specifications
Proper fluid selection is crucial, with requirements including specific viscosity grades (ISO VG 46-68), anti-wear additives, and oxidation stability. Contaminated or degraded fluid causes accelerated wear, increased operating temperatures, and reduced system efficiency. Regular fluid analysis detects degradation before it causes component damage.
Operating Pressure Parameters
Mobile crushers typically operate at 20-35MPa (2900-5000psi), with pressure variations indicating developing problems. Sudden pressure drops suggest internal leakage or pump wear, while pressure spikes indicate flow restrictions or valve malfunctions. Maintaining optimal pressure ensures consistent crushing performance and component protection.
Advanced Leak Detection Methods
Identifying and addressing hydraulic leaks promptly prevents environmental contamination, maintains system efficiency, and reduces operational costs. Modern detection techniques enable early intervention before minor leaks escalate into major failures.
Visual Inspection Protocols
Systematic visual inspections follow a standardized grading system: Class I (minor seepage), Class II (dripping without droplet formation), and Class III (continuous flow). Documentation includes leak location photographs, estimated flow rates, and environmental impact assessments. High-risk areas include cylinder rod seals and threaded fittings.
Acoustic Leak Identification
Trained technicians can detect distinctive bubble formation sounds indicating air entrainment in suction lines. High-pressure leaks produce characteristic hissing sounds, while internal leaks create turbulent flow noises. Using stethoscopes or ultrasonic amplifiers enhances detection sensitivity in noisy crusher environments.
Ultrasonic Detection Technology
Ultrasonic detectors with sensitivity below 0.1ml/min convert high-frequency leak sounds into audible signals. The detection procedure involves scanning suspected areas with directional microphones, comparing background noise levels, and pinpointing leaks using intensity indicators. This method effectively locates hidden leaks in complex hydraulic circuits.
Fluorescent Tracer Applications
Adding specialized fluorescent dyes to hydraulic fluid enables precise leak detection under UV light. After circulation through the system, technicians use high-intensity UV lamps to identify even microscopic leaks through bright fluorescence. This method is particularly effective for locating porous casting defects and hairline cracks.
Pressure Optimization Techniques
Maintaining precise hydraulic pressure ensures optimal crusher performance while preventing component stress. Proper adjustment procedures balance crushing force with equipment protection for different material types.
Pressure Setting Principles
Optimal pressure settings vary based on crusher model and material hardness. Granite crushing requires higher pressures than limestone, while recycled concrete demands intermediate settings. Manufacturers provide pressure charts specifying recommended ranges for different crushing ratios and material classifications.
Control Valve Adjustment Procedures
Adjusting relief valves involves loosening locknuts, turning adjustment screws clockwise to increase pressure (typically 1/4 turn = 1-2MPa change), then securely retightening locknuts. Pressure-reducing valves require similar procedures but affect specific circuit sections rather than entire systems. All adjustments should follow torque specifications to prevent vibration-induced setting changes.
Real-Time Pressure Monitoring
Installing pressure sensors at critical points (pump outlet, cylinder ports, valve blocks) with ≥10Hz sampling provides dynamic system analysis. Monitoring software detects abnormal patterns like pressure spikes during tramp metal events or gradual decay indicating pump wear. This data enables predictive maintenance scheduling.
Pressure Fluctuation Diagnostics
Sudden pressure increases signal overload conditions, triggering protective functions. Gradual pressure drops indicate internal leakage or pump wear. Analyzing pressure waveforms helps distinguish between normal operational variations and developing problems, allowing targeted interventions before failures occur.
Proactive Maintenance Strategies
Implementing structured maintenance protocols minimizes unexpected failures and extends hydraulic component lifespan. Preventive measures tailored to operating conditions significantly improve system reliability.
Fluid and Filter Management
Hydraulic fluid should be replaced every 500-1000 operating hours, with filter elements meeting β10≥200 efficiency ratings. Oil analysis at each change detects water content, particle contamination, and additive depletion. Proper filtration maintains fluid cleanliness to NAS 1638 Class 7 or better standards.
Seal Integrity Verification
O-ring hardness testing using Shore durometers identifies material degradation before leaks develop. Seals measuring below 70 Shore A require replacement. Installation includes proper lubrication and avoidance of twisting during assembly. Special attention is needed for mobile crusher hydraulic cylinders exposed to constant vibration.
Contamination Control Procedures
Chemical flushing removes sludge and metal particles using specialized cleaning fluids circulated at high velocity. The process includes pre-flush oil analysis, system heating to 60°C, turbulent flow circulation, and final contamination verification before refilling with new fluid.
Seasonal Maintenance Protocols
Winter operations require pre-heating systems to >10°C before start-up using circulation heaters. Summer maintenance focuses on cooling system efficiency through radiator cleaning and fluid temperature monitoring. Humidity control measures include desiccant breathers and regular insulation resistance testing.
Failure Analysis and Solutions
Understanding common failure scenarios helps develop effective prevention strategies and rapid response protocols.
Connection Leakage Resolution
Loose hydraulic fittings cause 40% of external leaks. Solutions include replacing standard fittings with high-strength alternatives, implementing torque-controlled assembly procedures, and using thread sealants compatible with hydraulic fluids. Regular torque checks during maintenance prevent vibration-induced loosening.
Pump Failure Prevention
Internal pump leakage typically stems from worn pressure plates or housing wear bands. Implementing 2000-hour overhaul intervals includes replacing wear components, inspecting shaft bearings, and verifying clearances. Monitoring pump case drain flow provides early detection of internal wear before pressure loss occurs.
Valve Malfunction Correction
Sticking valve spools cause erratic pressure control. Remedial actions involve disassembly, ultrasonic cleaning, spool lapping, and spring calibration. Installing in-line filters prevents repeat contamination. Valve function testing using portable test stands verifies proper operation before reinstallation.
Contamination Management
Monthly oil sampling detects particulate contamination early. Implementing desiccant breathers, quick-disconnect cleaning caps, and dedicated fluid transfer equipment reduces contamination ingress. In severe cases, installing offline filtration systems continuously cleans fluid during operation.
Future Maintenance Technologies
Emerging technologies are transforming hydraulic maintenance from reactive to predictive approaches, significantly improving reliability.
Intelligent Sensing Systems
Wireless pressure and temperature sensors with edge processing capabilities analyze data locally, triggering alerts only when parameters exceed normal ranges. These systems provide real-time monitoring without continuous data streaming, conserving battery life in remote locations.
Predictive Analytics Integration
Machine learning algorithms processing historical maintenance data and real-time sensor inputs predict failures with >85% accuracy. These systems generate prioritized maintenance recommendations, optimize spare parts inventory, and automatically schedule interventions during planned downtime.
Advanced Material Science
Nano-engineered seal coatings reduce friction by 40% and extend seal life by 50%. Self-healing polymers automatically repair minor surface damage, while hydrophobic surface treatments prevent water contamination in humid environments like mining operations.
Digital Twin Implementation
Virtual hydraulic system replicas simulate operational conditions, predicting component stress and failure probabilities. These digital twins enable virtual troubleshooting, maintenance procedure validation, and system optimization before implementing changes on physical equipment.
