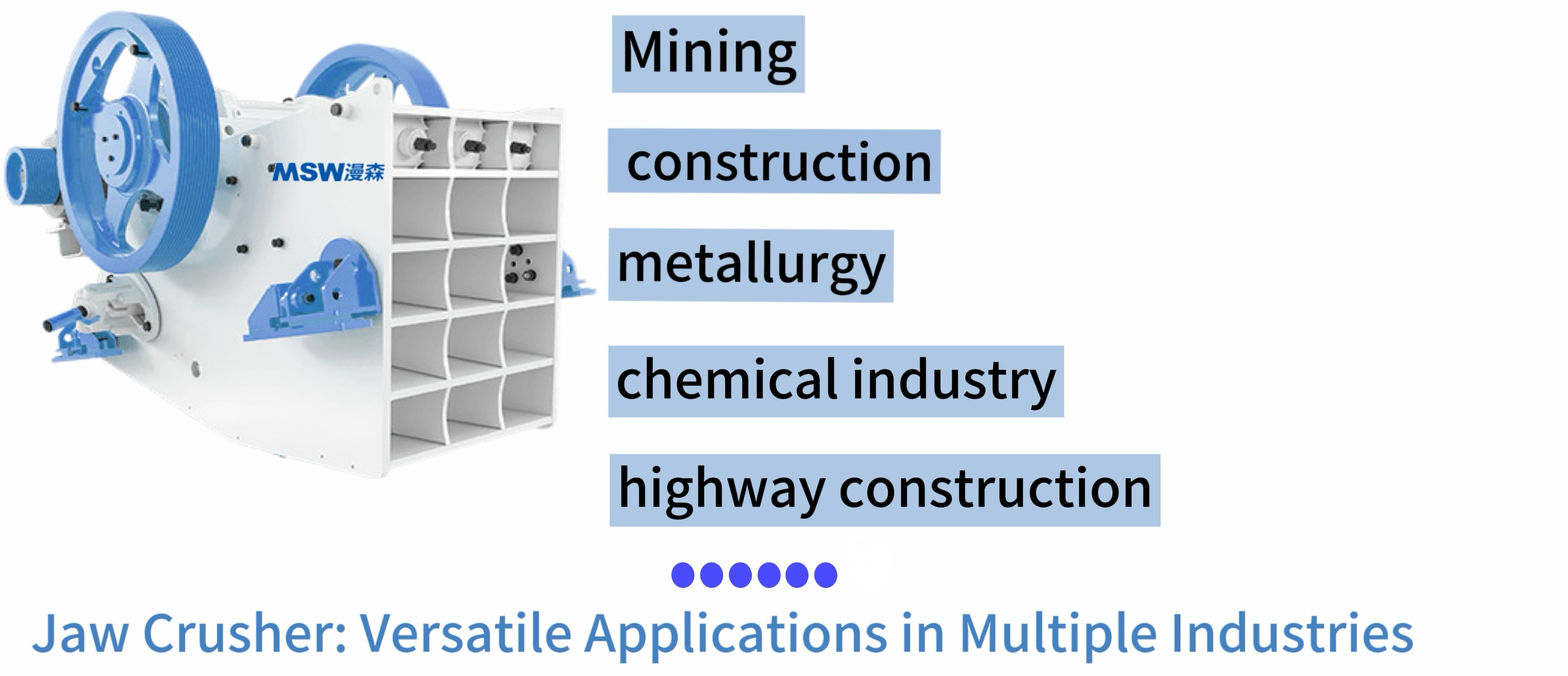

Jaw Crusher: Versatile Applications in Multiple Industries
Jaw Crusher in Mining: From Massive Rock to Process-Ready Feed
The moment a blast loosens thousands of tonnes of ore from the earth, the first machine that can safely bite into those jagged blocks is the jaw crusher. Its two vertical plates—one fixed, one swinging—mimic the motion of a giant pair of pliers, squeezing rock until it fractures into pieces small enough for conveyor belts, cone crushers, or grinding mills downstream. Because the opening between the plates can be adjusted from side plates and toggle plate assembly, operators are able to set the exact feed size that the rest of the plant expects, avoiding costly bottlenecks that slow metal recovery.
Whether the deposit yields iron ore that will later become steel beams or quartz crystals bound for electronics, the jaw crusher’s rugged frame and reinforced manganese lining absorb repeated impact without distortion. In underground headings where space is tight, compact models run on electric motors that fit inside narrow drifts; on sprawling open-pit benches, tracked mobile versions follow the blast pattern so trucks haul shorter distances. Either way, the machine’s ability to reduce volume by up to 70 % on the first pass slashes fuel bills and shrinks the carbon footprint of every tonne that leaves the mine gate.
Primary Crushing for Metal Ores
Copper porphyry, magnetite iron, and even gold-bearing conglomerates arrive at the jaw with unconfined compressive strengths that would stall smaller equipment. The machine’s deep crushing chamber and steep nip angle create the ideal geometry for breaking these high-density minerals while keeping throughput steady. After one pass, fist-sized lumps emerge at 100–150 mm, small enough for secondary crushing ratios to take over without overloading downstream screens.
Operators monitor wear by checking the fixed jaw plate and movable jaw plate every shift; when the profile begins to flatten, a quick swap restores sharpness and prevents oversized fragments from slipping through. This discipline keeps the plant’s overall energy draw low, because every extra millimetre of oversize rock that reaches the ball mill can double grinding costs.
Non-Metallic Minerals and Industrial Feedstocks
Limestone destined for cement kilns or gypsum for wallboard plants is softer than metal ores, yet it still arrives in boulders that would choke a calciner. A jaw crusher tuned for 3–6 Mohs hardness fractures these rocks cleanly, preserving the chemical purity that chemical plants demand. By adjusting the discharge size to between 5 mm and 50 mm, the same unit can switch from road-base aggregate one day to agricultural lime the next, giving quarry managers exceptional flexibility.
When the quarry faces seasonal floods, the crusher’s sealed bearings and sloped frame let water and mud drain away, preventing sticky clay from packing the cavity. The result is continuous production even when the weather turns hostile, ensuring that silos remain full and truck queues stay short.
Jaw Crusher in Construction: Building Tomorrow’s Cities Today
Every skyscraper, subway tunnel, and coastal highway begins with raw stone that must be shaped to exacting standards. The jaw crusher stands at the front of this supply chain, turning mountain faces and demolition debris into graded aggregates that engineers trust. Its robust frame, usually welded from thick steel plates, is engineered to endure the relentless pounding of granite or recycled concrete without developing the micro-cracks that would shorten service life.
Contractors value the machine’s modular design: side-access doors allow mechanics to reach the eccentric shaft and flywheel for routine greasing, while hydraulic cylinders let the operator open the chamber in minutes to clear an uncrushable chunk of rebar. These features translate into higher uptime during peak construction seasons when concrete plants pay premium prices for steady aggregate supply.
Aggregate Production for Concrete and Asphalt
Modern mix designs specify coarse aggregates at 10–31.5 mm for structural concrete and finer fractions at 5–10 mm for pumpable mortar. A jaw crusher set to a 100 mm closed-side setting delivers the coarser fraction in one pass, and when paired with a vertical roller mill or cone crusher it can reshape any excess into cubical grains that pass asphalt surface specs. By keeping the percentage of flaky particles below 15 %, the finished product locks together under compaction, giving roads and bridges the strength to carry decades of traffic.
Because the crusher’s crushing capacity scales from 50 t/h to well over 500 t/h, the same family of machines can serve a rural batching plant or a mega-project feeding multiple barges. Quick-change jaw dies let crews switch from hard granite to softer limestone in a single shift, minimising inventory risk when quarry sources fluctuate.
Recycling Construction and Demolition Waste
When old office towers come down, the jaw crusher steps in to give concrete and brick a second life. Reinforced slabs up to 600 mm thick are no match for the machine’s 350 MPa breaking force; once fractured, the material passes over magnets that pull out rebar and under air knives that remove lightweight contaminants. The resulting 0–40 mm recycled aggregate meets road-base standards and can substitute for virgin stone in new foundations, cutting disposal fees and quarry demand alike.
On constrained urban sites, a mobile jaw crusher mounted on rubber tracks can crawl inside a demolition zone, process debris on the spot, and feed trucks that haul value instead of waste. Noise suppression liners and water-mist dust suppression keep neighbours content while the city rebuilds around them.
Jaw Crusher in Metallurgy: Preparing Raw Materials for the Furnace
Steel mills and smelters do not accept run-of-mine rock; they demand feed that is chemically consistent and physically sized for optimal heat transfer. The jaw crusher delivers that uniformity by slicing through manganese nodules, chromite lumps, or nickel laterite with repeatable precision. An integrated adjustment device allows furnace crews to dial the outlet gap to ±1 mm, ensuring that every charge layer in a blast furnace or electric arc furnace retains the permeability needed for complete reduction.
In alloy plants, where minor variations in particle size can shift final chemistry outside aerospace tolerances, secondary sampling ports built into the crusher frame let metallurgists collect real-time assays. This feedback loop fine-tunes downstream blending, saving costly re-melts and keeping production schedules on track.
Black and Non-Ferrous Ore Preparation
For iron ore sinter lines, the jaw crusher reduces 1 m boulders to 20 mm chips that mix evenly with coke breeze and flux. The controlled crushing chamber geometry minimises the creation of ultrafines that would otherwise clog furnace gas paths. Similarly, copper sulfide ore emerges at 80 % passing 15 mm, the sweet spot for froth flotation cells that separate valuable chalcopyrite from barren pyrite.
When feed contains sticky clays or moisture above 8 %, specially profiled cheek plates and reversible jaw plates prevent material hang-up. By keeping throughput steady, the smelter avoids the costly practice of blending with dry ore just to keep kilns running.
Reclaiming Metallurgical By-Products
Slag dumps and spent refractory bricks hide valuable metal prills and oxides. A jaw crusher fitted with manganese steel that resists abrasion from molten slag glass liberates these particles so magnetic separators can recover iron units for recycling. The same process shrinks bulky waste into 20–50 mm pieces that substitute for aggregate in shotcrete, turning environmental liabilities into saleable products.
Because the crusher’s discharge size can be narrowed to as little as 10 mm, refractory processors can create fines that feed high-temperature rotary kilns for magnesium recovery. This closed-loop approach reduces landfill demand and conserves natural magnesite reserves.
Jaw Crusher in Chemical Processing: Safe, Precise, and Corrosion-Resistant
Chemical plants handle raw materials that range from rock-hard phosphate pebbles to fragile catalyst extrudates. The jaw crusher’s ability to tailor force and residence time makes it the preferred front-end unit. A sealed frame and inert-gas purge option protect operators when processing sulfur or other volatile solids, while replaceable liner plates fabricated from 316L stainless steel resist attack from hot caustic solutions.
When the process calls for exact particle size to guarantee reaction kinetics, the crusher’s toggle plate release mechanism prevents uncrushable tramp metal from damaging delicate downstream mills. This safeguard keeps batch reactors on schedule and prevents hazardous excursions caused by blocked feed lines.
Inorganic and Hazardous Material Handling
Producing agricultural-grade superphosphate begins with breaking phosphate rock to 5–20 mm granules that dissolve uniformly in acid. The jaw crusher’s adjustable stroke lets engineers fine-tune residence time so dust generation stays below the threshold that would trigger baghouse overload. Similarly, when spent potash briquettes return from the field, the same unit crushes them for re-solution, conserving both water and energy.
For toxic mercury-containing wastes, the crusher is installed inside a negative-pressure enclosure. A double-sealed hopper and regulated feed size limit fugitive emissions, ensuring that environmental compliance is never compromised during maintenance windows.
Jaw Crusher in Environmental Engineering: Turning Waste into Resource
Modern sustainability goals demand that every tonne of waste be viewed as tomorrow’s raw material. The jaw crusher has become the workhorse of this philosophy, processing everything from concrete highway slabs to hospital waste. Its rugged tracked mobile variants can be driven directly into disaster zones or landfill cells, reducing double handling and diesel burn.
Inside transfer stations, the crusher’s magnetic head pulley and eddy current separator work in tandem to pull ferrous and non-ferrous metals from shredded residue. The result is a clean mineral stream ready for asphalt plants or cement kilns, slashing the volume of material that would otherwise occupy scarce landfill space.
Construction Debris and Industrial Slag Recovery
After a hurricane levels coastal towns, mountains of fractured concrete block roads and ports. A jaw crusher deployed on a floating barge can reduce 500 mm chunks to 40 mm base material in a single pass, letting reconstruction crews rebuild faster than if they waited for distant quarries to reopen. The same machine, equipped with water jets, suppresses silica dust and protects nearby residents.
In steelmaking regions, stockpiles of blast-furnace slag await conversion into aggregate. A jaw crusher fitted with abrasion-resistant hammers shatters the glassy matrix, liberating entrained iron for magnetic recovery while producing 0–30 mm sand that meets geotechnical fill specifications. By diverting millions of tonnes from disposal, the process cuts greenhouse gases associated with virgin quarrying.
Jaw Crusher in Highway Construction: Paving the Way with Precision Aggregate
High-speed motorways and airport runways require aggregate that can withstand dynamic wheel loads without rutting or polishing. The jaw crusher’s consistent reduction ratio produces cubical fragments whose rough surfaces lock under compaction, giving asphalt layers the shear strength to endure decades of traffic. When coupled with a VSI crusher for final shaping, the combined line meets even the strictest Superpave specifications.
During routine maintenance, portable jaw units set up beside the roadway process milled asphalt and base course on the spot. The reclaimed material is blended with fresh binder and relaid within hours, reducing lane closures and the carbon footprint associated with hauling virgin stone over long distances.
Expressway Base Course and Bridge Deck Aggregate
For a high-speed rail viaduct, designers specify basalt coarse aggregate with a Los Angeles abrasion loss below 10 %. A jaw crusher followed by a single-cylinder hydraulic cone achieves this target by progressive comminution, each stage refining particle shape while limiting micro-fractures that would weaken concrete. By keeping crushing ratio per stage moderate, energy consumption stays within project budgets despite the demanding specification.
When existing highways are widened, the same jaw crusher that produced the original aggregate can be redeployed to break excavated pavement into 0–50 mm fill. This practice balances cut-and-fill volumes on site, minimising the need to import borrow material and preserving the original landscape profile.
