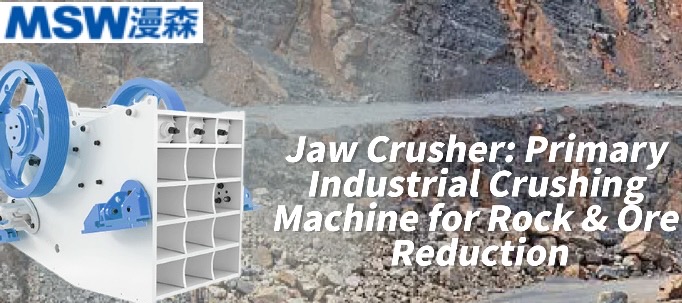

Jaw Crusher: Primary Industrial Crushing Machine for Rock & Ore Reduction

In industrial material processing, the Jaw Crusher stands as a cornerstone, tasked with the critical role of primary crushing. It transforms massive rocks, ores, and recycled materials into manageable sizes, serving as the first step in countless production chains—from mining operations extracting valuable minerals to construction sites producing aggregate for infrastructure. Its ability to reduce material from diameters as large as 1500 mm to particles as small as 5 mm makes it indispensable in industries where controlled particle size is key to downstream efficiency. This guide explores the mechanics, components, applications, and innovations that define the modern Jaw Crusher.

Core Working Principles and Crushing Mechanisms of Jaw Crushers

The Jaw Crusher’s efficiency is rooted in a deliberate interplay of mechanical forces and engineered design. At its simplest, it uses two opposing surfaces to apply force, but the science behind optimizing this process is complex. Understanding how these forces interact—compression, shear, and impact—reveals why it remains the primary choice for breaking large materials.

Mechanical Stress Types and Particle Size Control Logic

Compressive stress is the primary force driving the Jaw Crusher. Generated by the movable jaw’s periodic movement toward the fixed jaw, this force squeezes materials with intensity exceeding their tensile strength—often 300–500 MPa—to fracture even the hardest rocks like granite (150–300 MPa compressive strength). This action reduces material from 10–1500 mm to 5–350 mm, achieving a crushing ratio of 4–6 (input size divided by output size). For example, a 1000 mm boulder becomes ~167 mm in one pass with a ratio of 6, balancing efficiency and energy use.

Shear stress complements compression, especially for brittle or irregular materials. The movable jaw’s trajectory combines horizontal and vertical motion (more in double-toggle designs), creating a shearing effect that splits materials along natural fractures. This reduces energy needs for crystalline rocks like basalt, boosting efficiency by 10–15% in tests. Together, compression and shear ensure consistent particle reduction, even for tough ores.

Particle size control relies on the discharge gap (distance between jaws at closest contact) and chamber geometry. The gap sets maximum output size, adjustable via wedges for 5–350 mm ranges. Chamber design—depth, taper, and jaw angle—ensures progressive crushing, minimizing oversized particles. For finer sizes (5–20 mm), Jaw Crushers pair with secondary crushers like cone crushers, forming multi-stage systems.

Power Transmission System Design

Power comes from electric motors (stationary setups) or diesel engines (mobile units), ranging 15–400 kW. Small crushers (15 kW) handle 10–50 t/h, while large models (400 kW) process 500–1000 t/h. A belt pulley and flywheel transmit power to the movable jaw, with the flywheel storing inertia to smooth operation—critical for steady crushing and reducing vibration (below 2 mm/s in top models like Metso C106).

Stroke speed (200–300 strokes/minute) adapts to material hardness: slower (200–250) for hard rocks (granite), faster (250–300) for soft (limestone). Variable frequency drives (VFDs) let operators adjust speed, optimizing throughput. Balanced components and vibration isolators further stabilize operation, extending lifespan and reducing noise—key for urban sites.

Key Structural Components and Technical Optimizations

A Jaw Crusher’s reliability depends on precision-engineered components, each built to withstand extreme forces and abrasion. Decades of innovation have refined these parts—from jaw plates to overload systems—enhancing performance, reducing downtime, and lowering costs. Exploring these components reveals why modern crushers outperform their predecessors.

Crushing Chamber and Liner Material Innovations

The crushing chamber—defined by fixed and movable jaws—drives throughput and efficiency. Traditional shallow chambers limited material volume per stroke; modern deep-cavity designs (e.g., Sandvik HD Series) increase volume by 15–20%, cutting empty strokes and boosting hourly output. For a 500 t/day quarry, this adds 75–100 tons—equivalent to an extra production hour.

Chamber geometry, optimized via CAD and FEA, balances nip angle (18–24°), depth, and jaw curvature to prevent bridging and ensure even crushing. Liner materials—high-manganese steel (Mn13Cr2) or ceramic composites—withstand abrasion, lasting 8000–12 000 hours. Tungsten carbide-tipped liners extend life by 50% for abrasive ores like quartz, justifying higher upfront costs.

Liner design innovations include corrugated patterns to grip materials, with tooth spacing tailored to output size (50–100 mm for coarse, 20–50 mm for fine). Reversible liners double life, while quick-change hydraulic clamps cut replacement time from 8–10 hours to 2–3 hours—critical for high-capacity plants losing $5000–$10 000 hourly.

Overload Protection and Particle Size Adjustment Systems

Hydraulic overload protection safeguards against uncrushable objects (steel, concrete chunks). Sensors detect pressure spikes, triggering relief valves to retract the movable jaw, expel the object, and reset—all in<0.5 seconds. Sandvik’s HRS handles 200 % overloads, preventing damage. Mechanical shear bolts, cheaper but slower to replace, suit low-volume use.

Particle size adjustment uses wedge systems for 5–350 mm infinitely variable gaps, accurate to ±1 mm. Advanced models add hydraulic adjustment for remote control via PLC, letting automated plants adapt to downstream needs in real time. Regular calibration—weekly checks with calipers or lasers—maintains consistency, as 5 mm gap growth reduces on-size material by 10–15 %.

Industrial Applications and Case Studies

Jaw Crushers excel across mining, construction, recycling, and more, adapting to diverse materials and scales. Real-world examples highlight their impact—from ore processing to waste recycling—showcasing versatility and efficiency gains.

Mining and Metallurgy

In mining, Jaw Crushers kickstart ore processing. A South American iron mine upgraded to a Metso C200, boosting daily throughput from 8000 to 10 000 tons with deep cavities and hydraulic protection, cutting downtime by 60 % and saving $2.3 M/year. South American copper mines use tungsten carbide liners to extend wear life from 6000 to 10 000 hours, increasing concentrate production by 5000 tons/year—worth $3 M.

Gold mines benefit from shear-enhanced crushing: a North American site’s double-toggle PEX 300×1300 crusher increased gold recovery by 3 % in low-grade ore (1.2 g/ton), adding 1500 ounces/year ($2.7 M). This underscores how design nuances—like jaw trajectory—impact mineral liberation. Downstream stages often rely on cone crushers for finer reduction.

Construction Aggregates and Recycled Materials

Aggregate production relies on Jaw Crushers to turn rock into sand/gravel. A North American quarry added pre-screens to remove 0–5 mm fines, boosting throughput by 15 % and reducing liner wear—saving $150 000/year. Mobile units (e.g., Terex Finlay J-1175) process 500 t/day of C&D waste at European sites, producing recycled aggregate at $30/ton—undercutting virgin stone by $15/ton and earning $2.7 M/year.

Demolition projects use skid-mounted crushers to recycle concrete on-site. An Asian urban project processed 10 000 tons of debris into 50 mm backfill, cutting trucking costs by $50 000/month and meeting local waste reduction laws. These examples prove Jaw Crushers drive sustainability and cost savings.

Selection Strategies and Maintenance Management

Choosing the right Jaw Crusher and maintaining it proactively maximizes uptime and minimizes costs. Selection aligns with material hardness, feed size, and capacity, while structured maintenance prevents failures—key for operations where downtime is costly.

Selection Logic Based on Material and Capacity

Material hardness (Mohs/Protodyakonov scale) dictates crusher type: single-toggle for soft (limestone, f=1–5), double-toggle for medium (iron ore, f=6–10), and heavy-duty for hard (granite, f=11–20). Feed size requires 1.2–1.5× larger openings (e.g., 500 mm rocks need 600–750 mm openings). Capacity (10–1000 t/h) matches motor power (15–400 kW), with mobile units for remote sites and stationary models for high-volume quarries.

A North American road builder uses two mobile crushers to process 500 t/day on-site, eliminating $50 000/month in trucking. A quarry chose a 900×1200 mm model for 200 t/h limestone, balancing feed size (750 mm) and power (160 kW) for optimal efficiency.

Daily Maintenance and Troubleshooting

Preventive maintenance includes daily checks (leaks, jaw tightness, hopper debris) and monitoring vibration/current. Weekly lubrication with lithium grease (200–300 g for eccentric bearings) uses automated systems to avoid over-greasing—cutting bearing failures by 70 % at a South American mine.

Monthly tasks: measuring liner wear, checking belts, testing overloads. Liner replacement at 50 % wear reduces unplanned downtime by 30 %. Common fixes: clearing blockages with hydraulic rams, re-balancing flywheels for vibration, and aligning shafts to fix high bearing temps.

Future Trends and Technological Innovations

Jaw Crushers evolve with IoT, automation, and sustainability, becoming smarter and greener. These innovations boost efficiency, reduce environmental impact, and align with global carbon neutrality goals.

Intelligent Control and Energy Efficiency

IoT sensors monitor vibration, temperature, and current, sending data to cloud platforms. AI predicts failures (e.g., vibration + temp spikes signal bearing issues), cutting unplanned downtime by 45 % at a European mine. Adaptive crushing adjusts speed/pressure in real time—slowing for hard materials, speeding for soft—saving 10–15 % energy and improving crushing capacity.

Permanent magnet synchronous motors (PMSMs) convert 95 % of electricity to power (vs. 85 % for induction motors), saving 10 000 kWh/year for a 200 kW unit. Regenerative braking captures return-stroke energy, boosting savings to 20 %.

Environmental and Sustainability Design

Dust control uses water sprays and HEPA filters to meet 10 mg/m³ limits, reducing emissions by 90 % at a European quarry. Acoustic enclosures cut noise from 90–110 dB(A) to<85 dB(A), eliminating complaints at North American sites near residences.

Sustainable materials—recycled steel frames, rubber liners—reduce embodied carbon by 15 %. End-of-life design allows 90 % recycling, yielding $5000–$10 000 in metal per unit. These innovations make Jaw Crushers vital to circular economies, blending efficiency with eco-responsibility.
