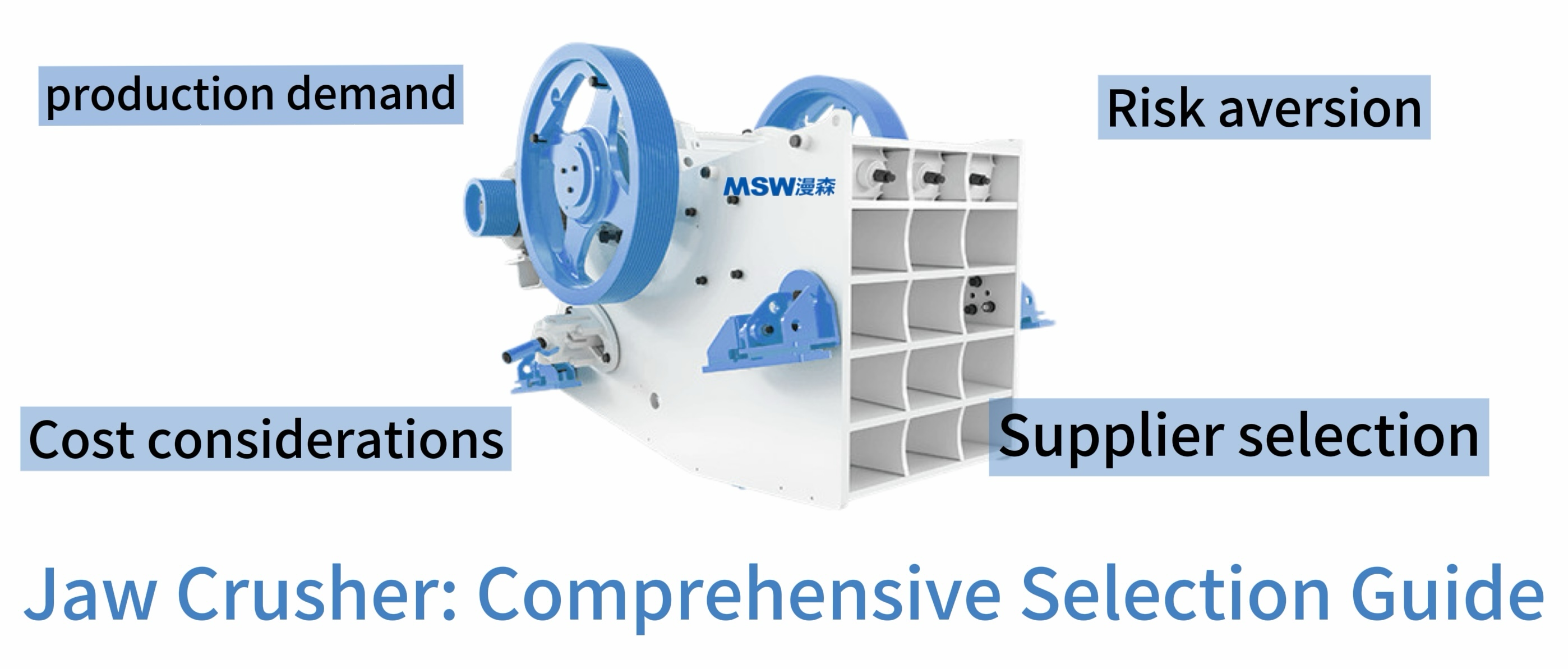

Jaw Crusher: Comprehensive Selection Guide

Choosing the right jaw crusherJaw Crusher is not a matter of guesswork; it is a strategic decision that directly shapes both production efficiency and long-term operating costs. When the machine is oversized, capital is wasted and floor space is consumed unnecessarily. When the machine is undersized, bottlenecks appear downstream and the entire plant operates below its potential. The following guide therefore walks through six interconnected dimensions—demand analysis, parameter matching, performance evaluation, supplier assessment, cost accounting and risk mitigation—so that every reader, from first-time buyers to seasoned quarry managers, can locate the model that fits the exact physics and economics of the site.

Before any catalogue is opened, it is useful to remember that feed size, desired discharge size and required crushing capacity form the three sides of an unbreakable triangle. A change in one side will always influence the other two, and the Jaw Crusher must be the vertex that balances them. Keeping this triangle in mind prevents expensive surprises after commissioning.

Clarifying Production Needs: The Prerequisite

Production needs are the north star for any equipment selection exercise. Begin by translating business targets into measurable physical targets: tonnes per day, maximum lump size entering the hopper, and the percentage of particles that must fall inside a given mesh range. These figures should be written down and agreed upon by the process, finance and maintenance departments, because every later technical decision will be checked against them.

Next, think one step further than the daily average. Seasonal peaks, weather disruptions or sudden export orders can push demand 20 % above the nominal figure, and the machine must either cope with the surge or be accompanied by a clear plan for parallel rental units. Similarly, downstream equipment such as cone crushers or screens already has fixed capacity ceilings; the Jaw Crusher must feed them evenly without starving or choking them. All of these considerations are best summarised in a one-page Production Design Basis that travels with the inquiry package to every potential supplier.

Accurate Capacity Calculation

Start the calculation with the shift pattern. A single-shift quarry running ten effective hours per day needs a nominal hourly rate of 50 t/h to reach 500 t/d, but a three-shift operation can achieve the same daily volume with a 17 t/h unit. Note, however, that continuous night running places extra stress on bearings and motors, so the selected machine should be derated by roughly 10 % in such duty. Add another 10 % for wear-related loss over the life of the liners and the final catalogue figure becomes closer to 65 t/h for the single-shift case and 21 t/h for the multi-shift case.

Translate the daily figure into annual production by multiplying by realistic calendar days—300 is a common planning figure in temperate climates. The exercise quickly reveals whether a 30-tonne or a 100-tonne machine is appropriate, and it sets the boundaries for the motor power discussion that follows later.

Detailed Material Characteristics

A lump of granite and a lump of limestone may look similar to the untrained eye, yet their response inside a Jaw Crusher differs dramatically. Granite, with a Mohs hardness of 6–7, demands steep nip angles, thick manganese jaws and robust flywheels to store the energy needed for each stroke. Limestone, at 3–4 on the same scale, is far gentler and allows lighter construction. Ignoring this distinction leads either to over-engineering and inflated capital cost or to premature fatigue failure.

Water content is equally influential. Anything above 10 % tends to clog the crushing chamber and blind the grizzly ahead of the jaws. In such cases, choose machines that offer a sloped frame and a vibrating hopper to keep material moving. Tramp metal—from rebar in recycled concrete to stray bolts in blasted rock—calls for an upstream magnetic separator or at least a hydraulic release system that opens the movable jaw instantly when an unbreakable object enters.

Strict Definition of Output Granularity

Many quarries sell three or four aggregate fractions simultaneously, so the concept of “final size” must be broken down into ranges such as 0–5 mm, 5–20 mm and 20–40 mm. The Jaw Crusher cannot produce all of these cuts alone; its role is to deliver a well-graded feed for the next stage. Therefore, state a target P80—the screen size through which 80 % of the particles will pass—and insist that suppliers demonstrate how the adjustable discharge opening can reach that value without opening beyond 120 % of the nominal setting when liners are worn.

If the downstream process is a vertical shaft impactor needing a tightly controlled feed below 40 mm, the Jaw Crusher must be capable of a closed-side setting of around 60 mm, leaving enough margin for wear and occasional tramp events. Documenting these relationships early prevents disputes after commissioning.

Matching the Operating Environment

The physical plant imposes its own constraints. A high-altitude site above 3 000 m reduces air density and therefore motor cooling; the supplier should derate the electric drive or offer a high-altitude fan kit. In sub-zero conditions, the lubrication oil must be heated before start-up, and the motor enclosures should be at least IP65 to prevent condensation damage. Equally, urban locations may impose noise limits of 85 dB(A) at the property line, which often forces the purchase of acoustic panels around the frame.

Power availability drives another fork in the decision tree. Where grid power is unreliable, a diesel-electric hybrid drive allows the crusher to start on fuel and then switch to mains once the alternator synchronises. Mobile contractors, on the other hand, may prefer a fully self-contained unit that can be towed between sites and fed by excavators without fixed conveyors.

Core Parameter Matching: The Pivot Point

Once the production envelope is clear, the next task is to translate those needs into measurable machine parameters. This is not a single calculation but a negotiation among competing variables: chamber geometry, motor power, mechanical throw and physical footprint. The goal is to converge on a model whose crushing ratio, throughput and wear life all fall inside the green zone on the supplier’s performance maps.

A practical approach is to request a selection curve for each candidate machine. These curves plot capacity against closed-side setting for several rock types. Overlay your own target point and immediately see which machines are too small, which are too large and which sit exactly on the curve. Remember that the curve is drawn for new liners; worn liners shift the curve downward by roughly 5 %–7 %, so build in that buffer.

Selection of Crushing Chamber Type

Deep chambers offer a longer stroke and therefore a higher reduction ratio, but they also demand more power and generate more fines. Shallow chambers sacrifice reduction for throughput and are popular in recycling plants where the feed is already partially crushed. Between these extremes lies the intermediate chamber, often the best compromise for virgin rock quarries.

The motion of the movable jaw is classified as either single-toggle or double-toggle. Single-toggle machines are lighter, cheaper and faster, making them prevalent in mobile plants. Double-toggle designs use a more complex linkage that reduces the vertical component of the stroke, cutting down on abrasive wear when crushing very hard stone. Whichever variant is chosen, insist on a chamber that can accept a feed particle 80 % of the gape width; anything narrower increases the risk of bridging.

Matching Motor Power

Catalogue power ratings are calculated under ideal laboratory conditions. In the field, variations in feed gradation, moisture and liner wear can push actual demand 15 %–20 % higher. Therefore, the motor should be selected at least one size above the theoretical figure. For example, if the calculation yields 90 kW, specify 110 kW to cover cold starts, voltage dips and eventual brush wear.

High-efficiency IE3 or IE4 motors add 1 %–2 % in price but pay for themselves within two years under typical duty cycles. Where variable feed rates are expected, a variable-frequency drive (VFD) softens mechanical shocks and allows the operator to run at partial load without wasting energy.

Adjustment Range of the Discharge Opening

Modern machines offer either manual shim adjustment or fully hydraulic systems. Manual shims are robust and inexpensive but require downtime of two to four hours when the operator wants to change the product size. Hydraulic cylinders can accomplish the same task in minutes, often from the control cabin, and they double as overload protection that instantly opens the gap when tramp iron is detected.

Check the minimum and maximum limits of the adjustment system. A machine whose narrowest setting is 40 mm will never produce a 20 mm railway ballast, regardless of downstream screens. Conversely, an excessively wide range may compromise chamber geometry at the extremes, so ask for test data at both ends of the scale.

Performance Evaluation: The Litmus Test

Even when theory and brochures align, real performance can diverge. Therefore, any serious procurement should include a site visit to an operating plant that runs the same rock type under similar duty. Record the actual tonnes per hour, measure the power draw with a clamp meter, and count the frequency of liner changes over the last twelve months. These numbers, not the glossy brochure, will populate the financial model.

During the visit, look specifically at the crushing chamber after eight hours of operation. A polished, mirror-like surface on the jaw liners indicates excessive slip and poor nip angle; a heavily grooved surface indicates good grip but possibly accelerated wear. Both observations feed back into the selection matrix.

Comprehensive Assessment of Crushing Efficiency

Efficiency is the ratio of useful work to energy consumed. In a Jaw Crusher, useful work is the creation of new surface area; anything else—noise, heat, vibration—is waste. A quick field test is to weigh the feed belt for exactly one minute, then weigh the discharge belt for the same interval. The mass should be identical minus the moisture lost to evaporation. A significant difference points to accumulation inside the chamber or spillage under the machine.

Next, screen both streams through the same set of sieves. The reduction ratio is the ratio of the P80 values, but the shape of the cumulative curve matters too. A steep curve indicates uniform fragmentation; a flat curve suggests either over-crushing or under-crushing. Aim for a curve whose slope matches the specification demanded by the concrete plant or asphalt supplier that will buy the aggregate.

Performance Analysis of Wear Parts

Jaw plates are usually the largest consumable cost. Their life is quoted in hours, but the more useful metric is grams per tonne processed, because it normalises for production volume. Ask the reference site for their logbook: if they report 1.2 g/t for limestone and your rock is 30 % harder, expect roughly 1.6 g/t.

Check how long it takes to replace the plates. A design that requires removing the flywheel and eccentric shaft will consume an entire shift, while a wedge-lock system can finish the job in two hours. Labour cost quickly outweighs the price difference between two competing liner designs.

Supplier Selection: The Safety Net

A well-designed machine in the hands of a weak supplier can still become a liability. Begin the vendor audit by verifying credentials: ISO 9001 for quality systems, ISO 14001 for environmental management, and CE or ANSI certification for safety. Next, inspect the factory floor. Look for CNC machining centres for the frame and main shaft, induction hardening furnaces for the jaws, and a test stand where every machine is run at full load before shipment.

Request a list of reference installations older than three years. Contact at least three of them and ask two questions: “If you had to buy again tomorrow, would you choose the same brand?” and “What was the longest unplanned shutdown you have experienced?” The answers often reveal more than any brochure.

After-Sales Service System

Even the best machine will eventually need spare parts. Map the supplier’s service network against your site on a 24-hour driving radius map. If the closest warehouse is three countries away, freight delays can stretch into weeks. Prefer vendors that guarantee next-day delivery for high-wear items such as jaw plates and toggle seats.

Training is another hidden value. A supplier that offers on-site operator training and an annual refresher course reduces the risk of misuse, which is the root cause of 30 % of early failures according to industry statistics. Ask for the syllabus and verify that it includes hydraulic safety, liner change procedures and VFD troubleshooting.

Comprehensive Cost Consideration: The Reality Check

Capital expenditure is only the tip of the iceberg. A 100 t/h Jaw Crusher priced 10 % below a competitor may end up costing more over five years if its liners last 20 % less or its motor efficiency is two percentage points lower. Build a spreadsheet that sums the following for a five-year horizon: purchase price, installation, annual electricity, wear parts, major rebuilds and residual value. Discount the cash flows at the company’s cost of capital to obtain a net present cost.

Electricity often dominates the running cost. A 90 kW motor running 6 000 hours per year at 0.12 USD/kWh consumes 64 800 kWh, equivalent to 7 776 USD annually. Upgrading to an IE4 motor that saves 3 % reduces the bill by 233 USD per year—not exciting, but over ten years it equals one complete set of jaw plates.

Residual Value and Exit Strategy

At the end of its life, the machine will either be scrapped or resold. Track the second-hand market for the chosen brand: a well-known model retains 25 %–30 % of its original price after eight years, while an obscure make may drop below 10 %. The difference can swing the net present cost by several thousand dollars, especially for larger models.

Some suppliers offer buy-back or trade-in programmes. These provide a guaranteed floor price and simplify fleet upgrades. Include the guaranteed buy-back value in the financial model and negotiate for a clause that locks the percentage, not the absolute amount, to protect against currency fluctuations.

Risk Mitigation and Contingency Planning

Finally, reduce residual uncertainty through contractual clauses and practical contingencies. Insert a performance guarantee that ties the final 10 % of the purchase price to achieving at least 95 % of the rated throughput under field conditions. Define the test procedure in advance: feed size distribution, moisture, CSS and operating hours. If the machine fails, the supplier must retrofit or replace it at no cost.

Prepare a parallel path: identify a second supplier capable of delivering an equivalent model within 30 days. Sign a non-binding memorandum that secures priority access in case the primary supplier defaults. Keep a critical spare-parts inventory—one set of jaw plates, two toggle plates and four bearings—so that even a six-week logistics delay will not stop production. These measures do not add significant cost, yet they convert a potential crisis into a managed inconvenience.
