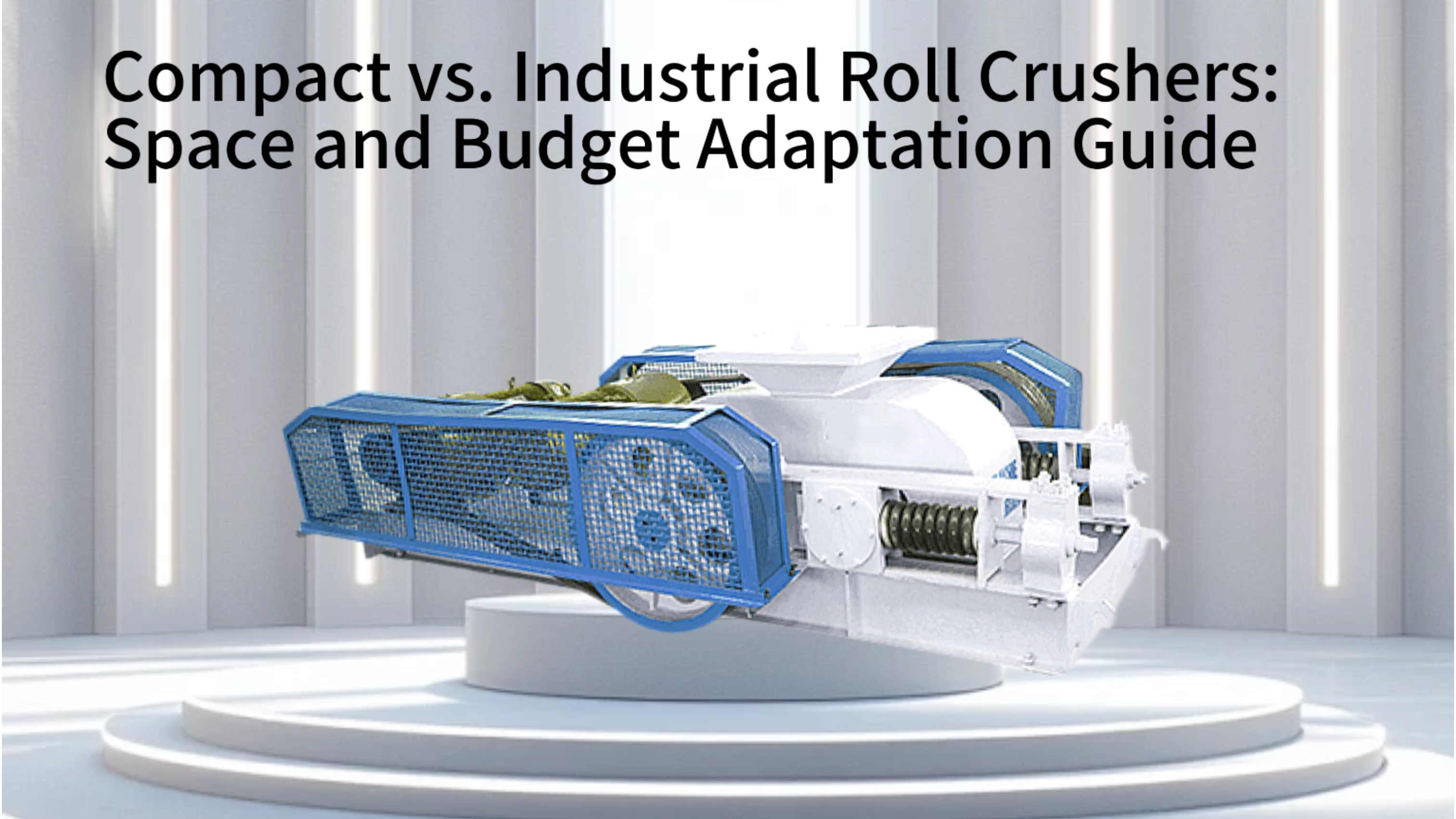

Compact vs. Industrial Roll Crushers: Space and Budget Adaptation Guide
Selecting between compact and industrial roll crushers requires careful analysis of spatial constraints and financial considerations. This guide compares installation footprints, operational costs, and application-specific performance to help businesses make data-driven decisions. Through parametric models and industry case studies, we reveal how to balance economic efficiency with functional requirements across different operational scales.
Spatial Requirements Comparison
Physical space availability fundamentally influences crusher selection. Compact units offer installation flexibility, while industrial models require substantial infrastructure planning. Each solution presents unique spatial challenges and optimization opportunities across diverse operational environments.
Physical Dimensions and Installation Specifications
Compact crushers under 2m³ fit within standard workshops without structural modifications. Their integrated designs minimize foundation requirements, enabling rapid deployment. Industrial units exceeding 5m³ demand reinforced concrete foundations and structural analysis to handle vibration loads.
Ceiling height and aisle width directly determine equipment placement possibilities. Industrial installations require overhead crane access for maintenance, while compact models utilize simple lifting points. Proper clearance planning prevents operational bottlenecks in material handling workflows.
Power and Support System Demands
Compact crushers often operate on standard 220V single-phase power, reducing electrical upgrade costs. Industrial units require dedicated three-phase connections with voltage stabilizers to handle peak loads exceeding 500kW. Power infrastructure represents 15-30% of total installation costs for large systems.
Dust collection needs scale dramatically with crusher size. Compact units integrate basic filtration, while industrial installations require separate cyclone systems with automated pulse cleaning. Noise containment solutions range from simple enclosures to fully soundproofed chambers for urban operations.
Mobility and Modular Configuration
Wheel-mounted compact crushers transition between sites in hours, ideal for temporary projects. Their integrated chassis eliminates separate transport vehicles. Industrial units typically require disassembly for relocation, though modular mobile crushers offer semi-permanent solutions.
Containerized designs maximize space efficiency for both types. Compact units fit standard shipping containers, while industrial models utilize expandable modular containers that assemble on-site. This approach reduces foundation work and enables future reconfiguration.
Space Optimization Case Studies
Vertical stacking of compact crushers doubles capacity within the same footprint - a solution implemented in Japanese recycling plants. Underground mines utilize low-profile designs under 2m height, while offshore platforms employ corrosion-resistant compact units with specialized anchoring systems.
One cement plant increased output 40% by arranging compact crushers in a circular formation with shared conveyors. Such innovative layouts demonstrate how spatial constraints can drive efficiency rather than limit it.
Capital Investment Analysis
Budget allocation strategies differ significantly between compact and industrial crushers. Understanding cost structures helps optimize financial planning and identify hidden expenses that impact total ownership costs.
Equipment Acquisition Cost Structure
Compact units under $50k offer immediate operational capability with minimal customization. Industrial models above $200k include engineering fees for application-specific modifications. Roll shafts and drive systems constitute 40-60% of manufacturing costs in both categories.
Premium materials like tungsten carbide surfacing add 15-25% to base prices but extend component life. Bulk purchasing programs for fleet operators can reduce per-unit costs by 10-15% for identical models.
Transportation and Installation Expenses
Compact crushers ship via standard freight with plug-and-play installation. Industrial units require specialized oversize transport with police escorts and route surveys. On-site assembly involves crane rentals and technical teams, often doubling delivery timelines.
Remote site installations add terrain surcharges - mountainous regions increase costs by 30-50% compared to urban facilities. Proper site preparation including leveling and drainage can reduce installation expenses by 20%.
Financial Incentives and Subsidies
Government programs frequently subsidize compact crushers for small businesses modernizing equipment. Eco-efficient models qualify for tax credits up to 15% of purchase price in many jurisdictions. Export-oriented purchases benefit from duty drawback programs when manufacturing for international markets.
Special economic zones offer VAT exemptions for crushers used in designated industries. Researching regional incentives before procurement can yield substantial savings, particularly for sustainable operations.
Financing Option Comparison
Leasing compact crushers preserves capital with payments typically covering maintenance. Industrial units often utilize financing structures where ownership transfers after 3-5 years of payments. Government-backed loans offer below-market rates for equipment reducing environmental impact.
Operational leasing avoids balance sheet liabilities but limits customization. Each financing model carries different tax implications - consult financial advisors to align payment structures with cash flow patterns.
Operational Efficiency Metrics
Long-term operating costs reveal the true value proposition of different crusher sizes. Energy consumption, maintenance frequency, and labor requirements create compound effects on profitability over equipment lifespan.
Energy Consumption Patterns
Compact crushers with variable frequency drives adjust power to material flow, saving 15-25% energy versus fixed-speed models. Industrial units maintain constant power but achieve better kWh/ton ratios at full capacity. Both suffer efficiency losses when operating below 60% load.
Idle power consumption represents 10-15% of total energy use. Smart shutdown systems in modern crushers reduce this waste by 80% during material gaps. Monitoring systems benchmark performance against industry capacity standards.
Wear Component Replacement Cycles
Compact crusher rollers follow linear wear patterns - 1mm per 500 operating hours in granite processing. Industrial bearings have predictable fatigue lives of 10,000-20,000 hours. Lubricant consumption scales disproportionately - large systems use 3-5x more lubricants but benefit from bulk purchasing.
Automated wear monitoring extends component life 20-30% by optimizing replacement timing. Remote diagnostics predict failures weeks in advance, minimizing emergency maintenance costs.
Labor Efficiency Considerations
Single-operator compact crushers require minimal training, while industrial units need specialized crews. Centralized control rooms allow one technician to manage multiple crushers, reducing staffing needs by 40-60% in large facilities.
Automated sampling and adjustment systems cut manual checks from hourly to daily routines. However, highly automated systems require 30% higher skilled labor costs for programming and maintenance.
Maintenance Downtime Analysis
Compact units resume operation within 2 hours after routine servicing. Industrial crushers require planned 3-5 day shutdowns for comprehensive overhauls. Preventive maintenance programs boost overall equipment effectiveness (OEE) by 15-25% for both categories.
Component standardization reduces spare part inventories. Operations with multiple identical crushers report 30% less downtime through shared component pools and specialized maintenance teams.
Performance Capacity Matching
Aligning crusher capacity with operational needs prevents both underutilization and bottlenecks. Output characteristics directly influence product quality and marketability across different applications.
Hourly Throughput Capabilities
Compact units handle 20-80 tons/hour, ideal for batch processing. Industrial crushers maintain steady 300-800 tph flows for continuous operations. Material hardness causes 15-30% output variation - granite reduces throughput 25% versus limestone at identical settings.
Feed consistency dramatically impacts actual output. Pre-screening doubles effective capacity by removing undersize material before crushing. Learn about feed optimization in our feed size management guide.
Size Reduction Capabilities
Compact crushers achieve 3:1 to 8:1 reduction ratios suitable for secondary crushing. Industrial models reach 10:1 to 20:1 ratios in single pass primary crushing. Closed-circuit systems with recirculation boost effective reduction ratios by 30-50% for both types.
Precise discharge size control varies significantly - compact units maintain ±2mm tolerance, while industrial crushers achieve ±0.5mm consistency. This precision directly influences product value in construction applications.
Material Flexibility Comparison
Compact crushers efficiently switch between 3-5 material types daily, ideal for recycling operations. Industrial units optimize for single-material high-volume processing, with changeovers requiring 4-8 hours. Hybrid materials like C&D waste challenge both systems, often requiring pre-sorting.
Moisture content above 8% reduces compact crusher efficiency 20-40% versus industrial units with heated rollers. Material testing before selection prevents costly operational limitations.
Product Value Optimization
Compact crushers predominantly produce 0-5mm fines suitable for fill material. Industrial units generate premium 5-30mm aggregates commanding 30-50% price premiums. Well-graded curves from industrial crushers increase concrete strength 15-20% versus irregular mixes.
Market analysis should guide target sizing - asphalt production requires strict adherence to specific gradation bands, while general construction allows more flexibility in output specifications.
Industry-Specific Implementation
Optimal crusher selection varies dramatically across sectors. Application requirements dictate size preferences based on material characteristics, operational patterns, and regulatory environments.
Mining Operations
Compact crushers serve exploration teams for on-site sample processing. Industrial units dominate open-pit mining operations with conveyor-integrated systems moving 1000+ tph. Underground mines mandate compact designs under 3m height with explosion-proof certifications.
Hard rock mines prioritize wear resistance, while coal operations focus on dust suppression. Mine planning should include crusher relocation paths as faces advance to minimize rehandling costs.
Construction Materials Production
Precast concrete plants utilize compact crushers for on-demand aggregate adjustments. Full-scale cement plants employ industrial crushers in continuous feed systems. Integrated sand/aggregate lines use synchronized compact and industrial units for balanced output.
Urban batching plants increasingly adopt compact crushers to process local demolition waste, reducing transport costs. Output quality must meet strict ASTM/EN standards for structural applications.
Recycling Applications
Decentralized construction waste recycling thrives with mobile compact crushers processing material at demolition sites. Centralized facilities employ industrial units for 24/7 operation with integrated sorting systems. Both require ferrous metal separation - compact units use magnetic head pulleys while industrial plants employ overhead magnets.
Advanced recycling operations incorporate air classifiers removing lightweight contaminants. Output purity determines market value - contaminated aggregates sell at 30-50% discounts.
Specialized Material Processing
Research labs use bench-top compact crushers for material development. Industrial salt and potash operations require corrosion-resistant designs with wash-down capabilities. Chemical processing demands spark-proof construction and airtight seals for volatile materials.
Explosion suppression systems add 15-20% to crusher costs but are mandatory for combustible dust applications. Material safety data sheets should guide equipment specifications.
Long-Term Economic Modeling
Comprehensive financial analysis extends beyond purchase price to encompass total ownership costs. Strategic planning accounts for scalability, technological evolution, and regulatory compliance over equipment lifespan.
Lifecycle Cost Analysis
Compact crushers typically show positive ROI within 2-3 years but have 5-7 year operational lifespans. Industrial units require 4-6 year payback periods but operate 10-15 years with proper maintenance. Residual values range from 20-40% for well-maintained equipment.
Secondary markets differ significantly - compact crushers resell quickly to small operators, while specialized industrial units have limited buyers but command premium prices.
Expansion Flexibility
Compact crushers enable modular growth - adding parallel units increases capacity incrementally. Industrial crushers face physical limitations in upgrades, though some accept 20-30% throughput boosts with drive enhancements. Hybrid systems pair primary industrial crushers with secondary compact units for flexibility.
Future-proof designs incorporate extra power capacity and structural margins for upgrades. Planning for 20% capacity growth prevents premature equipment replacement cycles.
Technology Adoption Risks
Compact crushers adapt faster to innovations like AI control through retrofit kits. Industrial crushers face higher obsolescence risks - control system upgrades may cost 15-20% of original equipment price. Mechanical designs remain stable, while electronics evolve rapidly.
Industry standards like ISO 21873 evolve continuously. Compliance updates for existing equipment can cost 5-10% of original investment annually if not designed for future regulations.
Environmental Compliance Costs
Compact crushers require 10-15% investment for basic dust and noise control. Industrial units need comprehensive environmental systems representing 20-30% of total project cost. Carbon footprint calculations increasingly influence equipment selection - electric compact units reduce emissions 40-60% versus diesel alternatives.
Emerging carbon trading schemes create financial incentives for efficient operations. Monitoring systems documenting energy savings can generate carbon credits offsetting operational costs.
Selection Methodology Framework
Structured decision-making tools transform complex parameters into actionable insights. Multidimensional analysis prevents oversights in critical factors that impact long-term operational success.
Comparative Evaluation Matrix
Three-dimensional assessment models plot spatial needs against budget constraints and capacity requirements. Weighted scoring assigns priority to critical parameters - mining operations emphasize durability while recycling values flexibility. Sensitivity analysis identifies which factors most significantly impact outcomes.
Industry benchmark data provides reality checks - available through trade associations and equipment manufacturers. Cross-referencing projections against actual installations prevents unrealistic assumptions.
Vendor Qualification Process
Balance manufacturing scale against customization capabilities - large producers offer standardization while specialists provide tailored solutions. Case study verification should include site visits to similar operations, not just documentation review.
Service network evaluation requires testing response times - submit dummy service requests to measure real-world performance. Maintenance training programs and spare parts availability differentiate suppliers beyond equipment specifications.
Digital Simulation Applications
Discrete Element Modeling (DEM) simulates material flow through virtual crushers, predicting output gradation before installation. Virtual commissioning identifies interface issues between crushers and existing material handling systems.
Digital twin technology creates living models that improve with operational data. These systems predict maintenance needs and optimize settings, potentially increasing output 5-10% through continuous calibration.
Regulatory Compliance Resources
ISO 21873 establishes global performance testing protocols. Regional certifications like CE marking and EPA regulations dictate safety and emission standards. Energy efficiency classifications (e.g., IEC 60034-30) help evaluate operating costs across equipment lifecycles.
Compliance documentation should be verified during procurement - missing certifications can delay commissioning by months. International operations require careful attention to local variations in regulatory frameworks.
